Notice

A line at the window's foot that says what just happened and offers at most one way back.

Part of a Files window headed Home, Documents, with three files. At the window's foot sits a line, Moved 3 files to Documents, with an accent button, Undo. — A notice after a move.

Use a notice to tell someone what an action did when it is done and can be undone: "Moved 3 files to Documents", "Link copied". It is Files' status line and its Undo pill as a part. It is the answer to "are you sure?" for anything that can be undone: do it, and offer Undo (Asking). For what cannot be undone, the action asks for itself with confirm, on a Slab or an action as words. For an error that stops the person, use page state. A notice has no title and no second line.

Anatomy

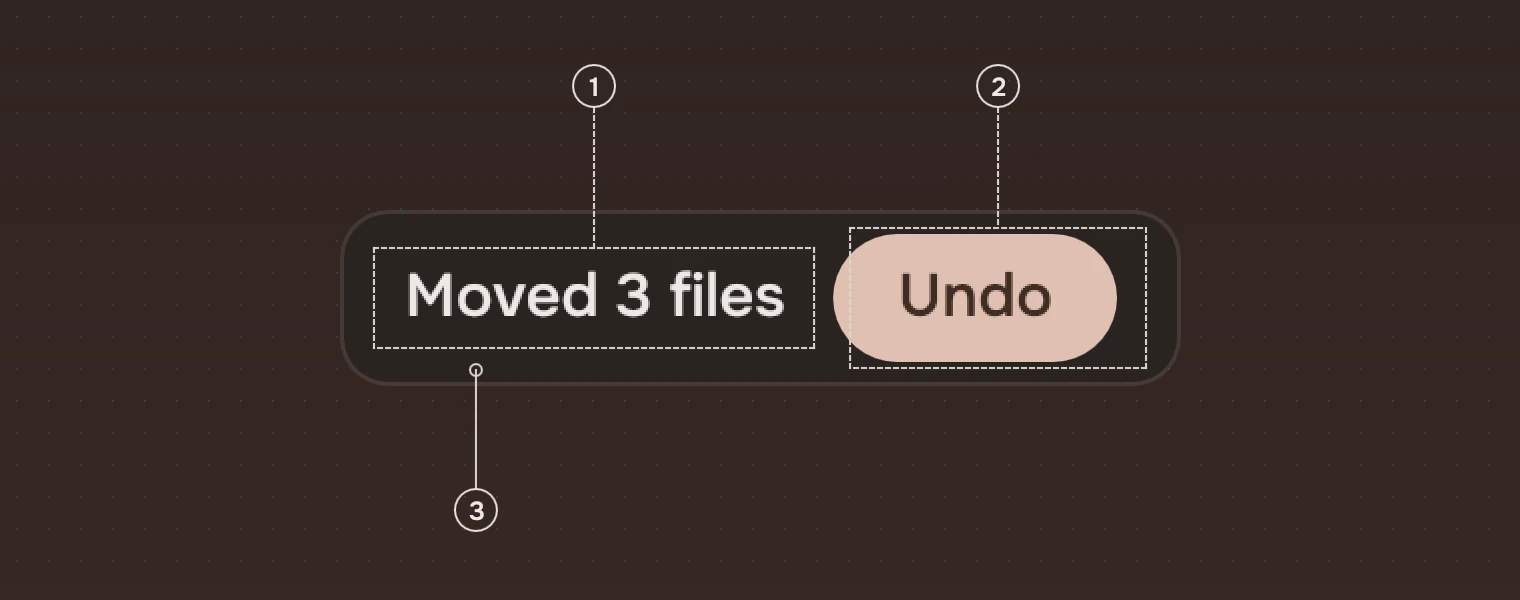

A notice at twice its size, with numbered callouts. 1 names the line of words. 2 names the Undo button, a pill in the accent. 3 names the rounded surface under both. — A notice at twice its size.

LineWhat happened, in the main ink. If it is too long it is cut at the end.
ActionThe one way back, a pill filled with the accent, its words Medium in the ink on the accent. Leave it out for a line that only reports.
SurfaceThe overlay colour with the menus' faint edge, a 10 % line in the main ink. Over content the line needs a ground of its own.

States

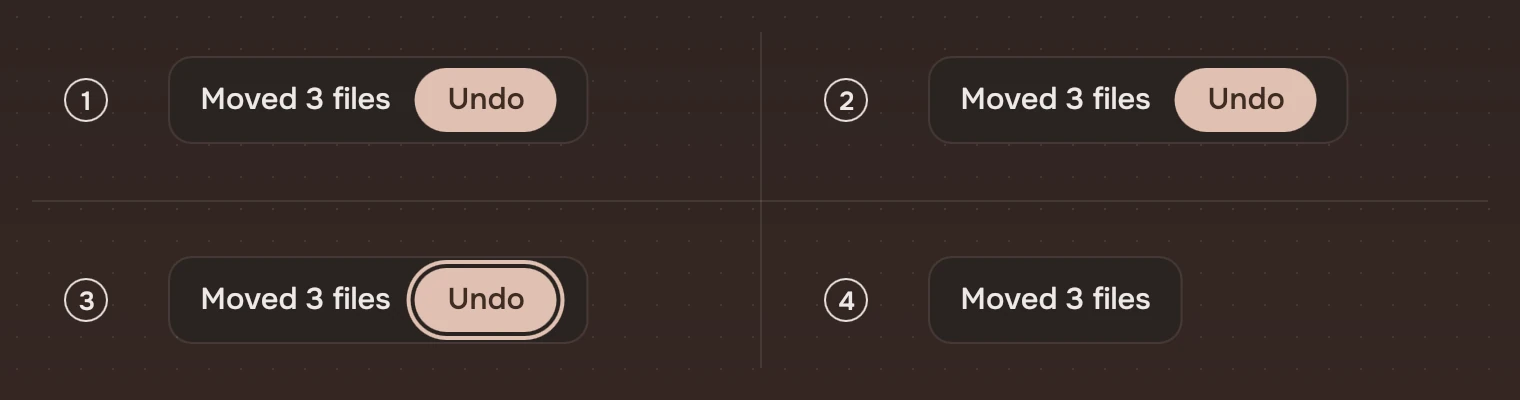

The notice four times, in two rows, numbered. 1: shown. 2: held, with the pointer on it. 3: the Undo button has the keyboard focus ring. 4: a notice with no action. — The notice in four states.

ShownIt rose into place and stays for 6 seconds.
HeldThe pointer is on it. It waits, and the 6 seconds start again when the pointer leaves.
Keyboard focusThe ring around the pill. Focus in the notice holds it too.
No actionOnly the line.

It arrives by rising 16 pixels from below as it fades in (arriveSmall, 250 ms) and leaves faster (leave, 200 ms). A second show() replaces the line and starts the time again.

Sizes

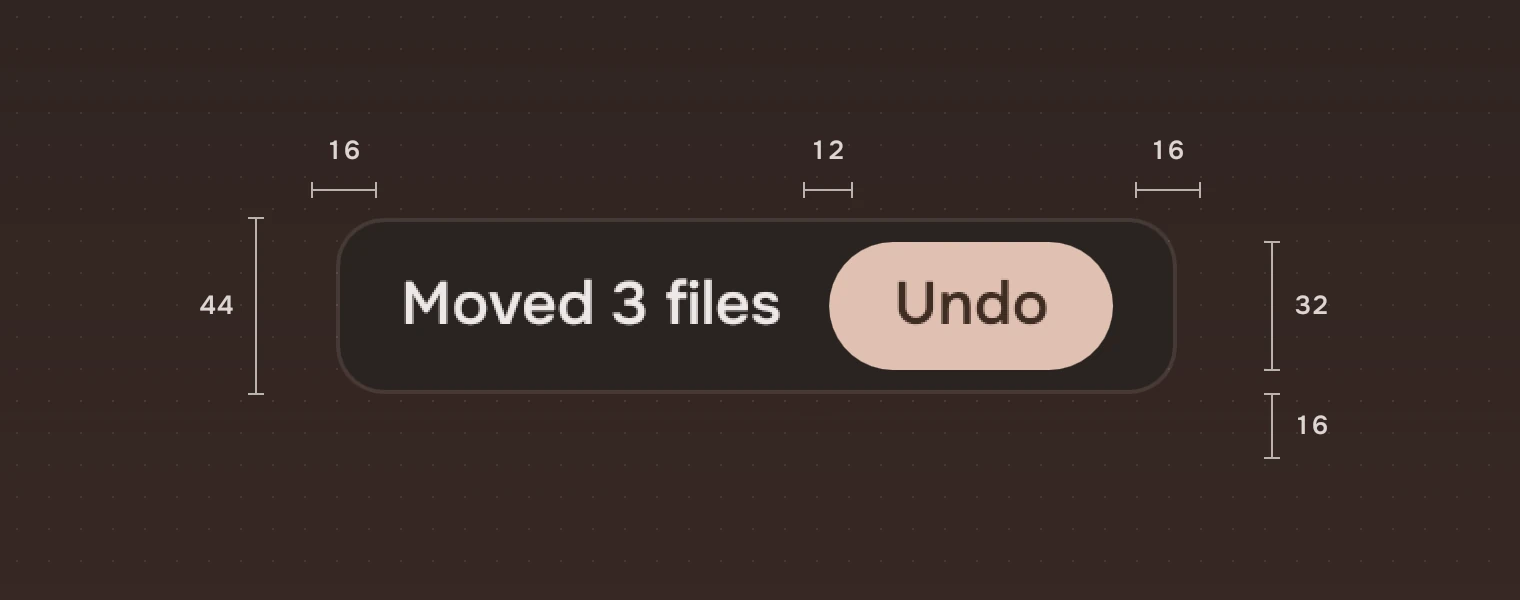

A notice at twice its size with dimension lines: 16 before the line, 12 between the line and the button, 16 after the button, 44 high, the button 32 high, and 16 from the notice to the window's foot. — The notice at twice its size.

Part	Value
Height	44 (the row height)
Padding	16 each side; 12 between the line and the action
Action	32 high, a full pill, 16 inside each side of its words
Corner	12
Position	Centred, 16 above the window's foot; at most the window's width less 32
Time	6 seconds (`motion.notice`)

Keys and pointer

Do this	To
`Tab`	Reach the action, while the notice is up
`Enter` or `Space` on the action	Do it and close the notice
`Esc`	Close it from the action
Pointer on it	Keep it up
Click the action	Do it and close the notice

Give the app's own shortcut for the action as well, such as Ctrl Z. The action is a Tab stop only while the notice is up.

Accessibility

A notice is an alert message named by its line, so a screen reader reads it when it appears. How a live region is spoken is the platform's.
The action is a button, named by its words, and the notice's description says "Action: Undo".
It stays while the pointer or the keyboard is in it, so there is time to reach the action.
With reduced motion on it appears and goes at once; it still stays 6 seconds.

Writing

Say what happened, in the past tense, with the number and the place: "Moved 3 files to Documents". One short line, no full stop, no "Successfully". The action is one word for the way back: "Undo". Do not use a notice for something the person must read; it goes after 6 seconds.

Do and don't

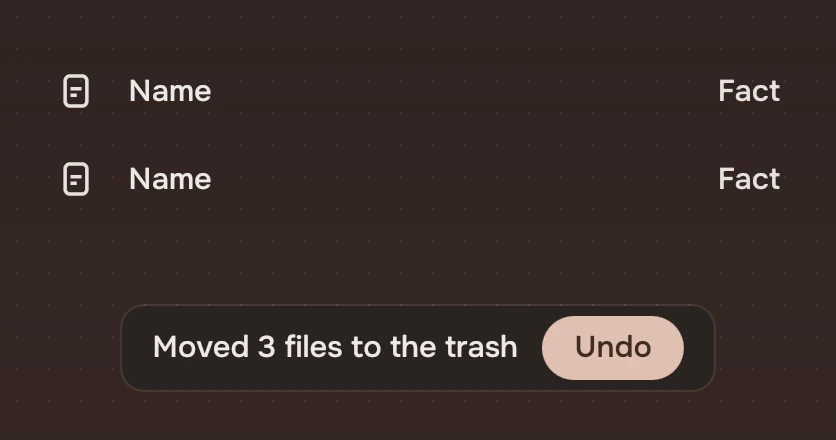

Two rows of a list with a notice below them: Moved 3 files to the trash, with an Undo button. — DoSay what happened and offer the way back.

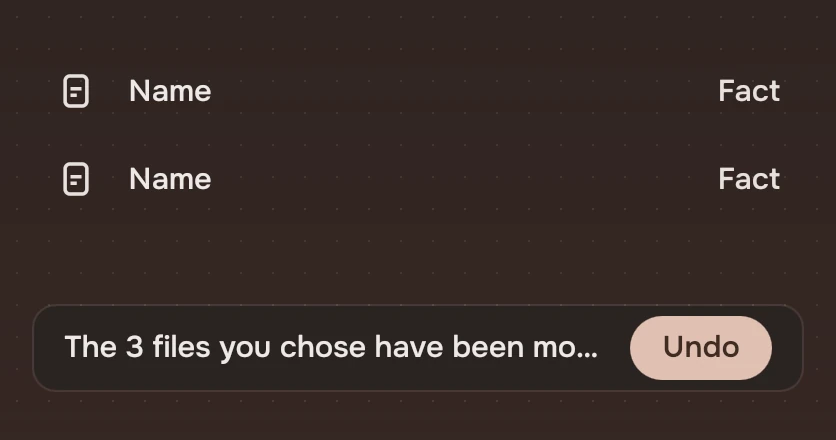

A notice with a long sentence, The 3 files you chose have been moved to the trash, cut short at the end, and an Undo button. — Don'tWrite a sentence. A line that is cut says less, and it is gone in 6 seconds.

Code

import Tacit.Kit

Item {
    Notice {
        id: notice
        onActivated: files.undoMove()
    }

    function moved(n, place) {
        notice.show("Moved " + n + " files to " + place, "Undo")
    }
}

Put the notice in the window's root item. It places itself at the foot.

Property or signal	What it does
`show(text, actionWords)`	Shows the line. A second call replaces it and starts the time again; "" for the words shows no action
`hide()`	Closes it
`text`, `actionWords`	What is shown now
`shown`	Whether it is up (read only)
`held`	The pointer or the keyboard is on it (read only)
`activated()`	The action was activated. The notice closes
`closed()`	Always follows: by time, by the action, by Esc or by `hide()`

Experimental, in Tacit.Kit 0.1. A screen reader's live-region behaviour is the platform's.
