Window ground

The ground an app window draws: the shell's ground at the person's see-through setting, with the window's corners.

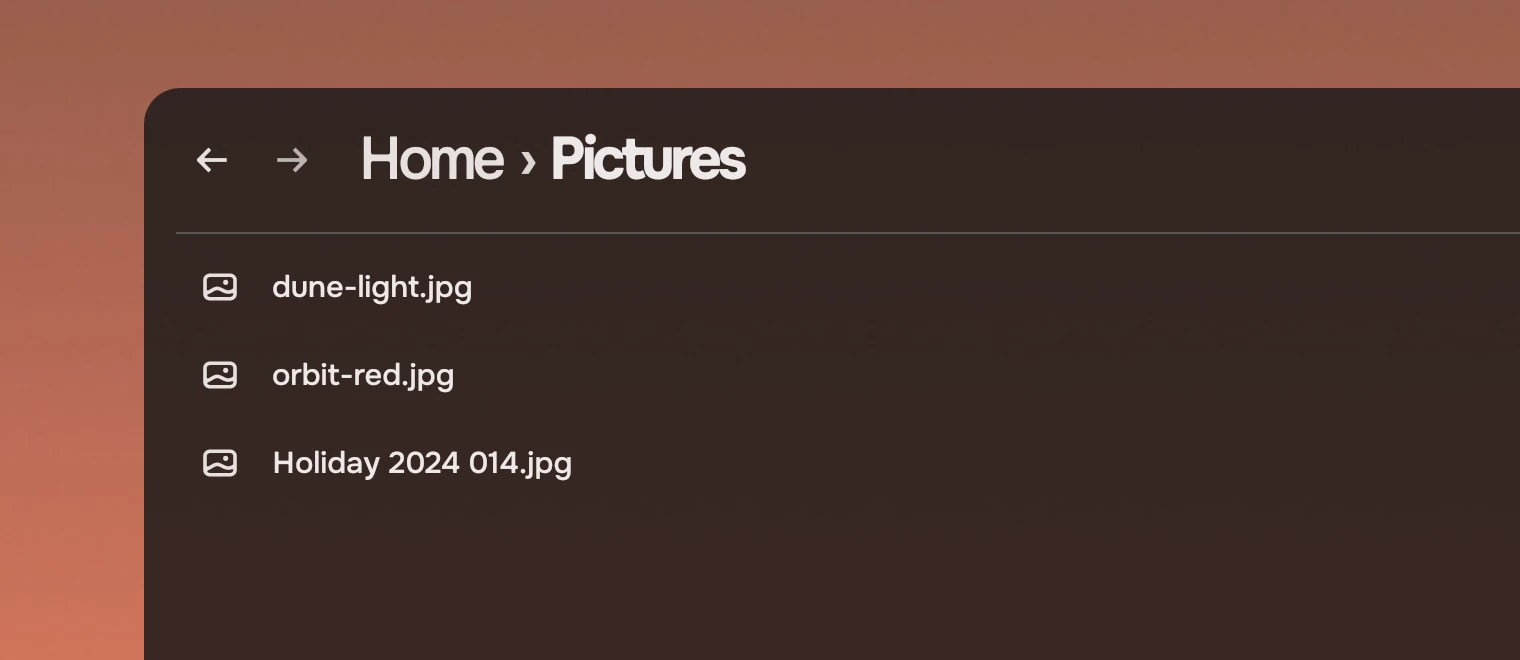

The top-left corner of a window on the wallpaper, headed Home, Pictures, with three rows. The window's dark ground is a little see-through, so the wallpaper's warmth shows in it. — A window with its ground.

Put WindowGround first in every app window's root, and draw the rest over it. Files, Music, Praxis and Settings each drew this by hand before it was a part. The compositor blurs what is behind the window; the ground goes over that. For the surfaces inside the window, see materials.

Anatomy

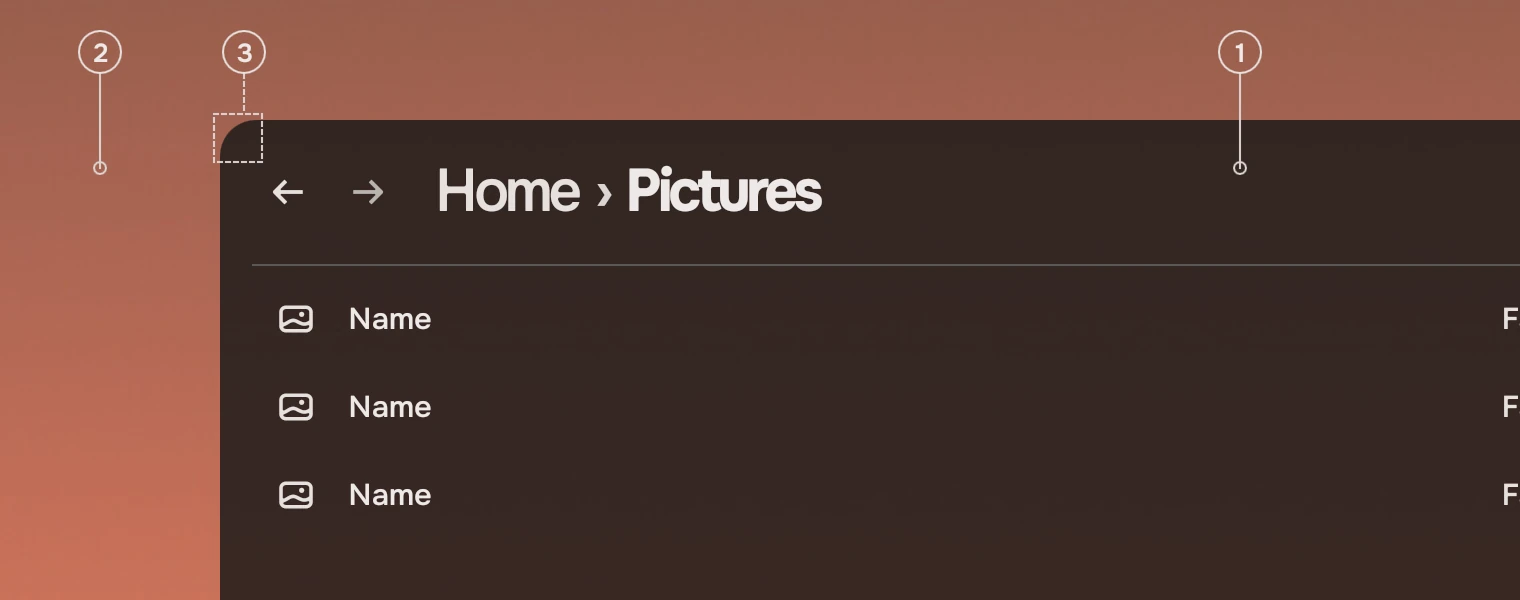

The top-left corner of a window on the wallpaper, with numbered callouts. 1 names the window's ground. 2 names the wallpaper beside the window. 3 names the window's rounded corner. — The window's ground, the wallpaper and the corner.

GroundThe windowGround colour, drawn at 1 - windowSeeThrough opacity. It follows the wallpaper and the person's setting by itself.
WallpaperWhat shows through the ground, more as the setting goes up.
Corner18 pixels, the window radius. Where the compositor rounds the window itself, set radius: 0.

States

The ground has no states of its own; what changes it is the person's see-through setting.

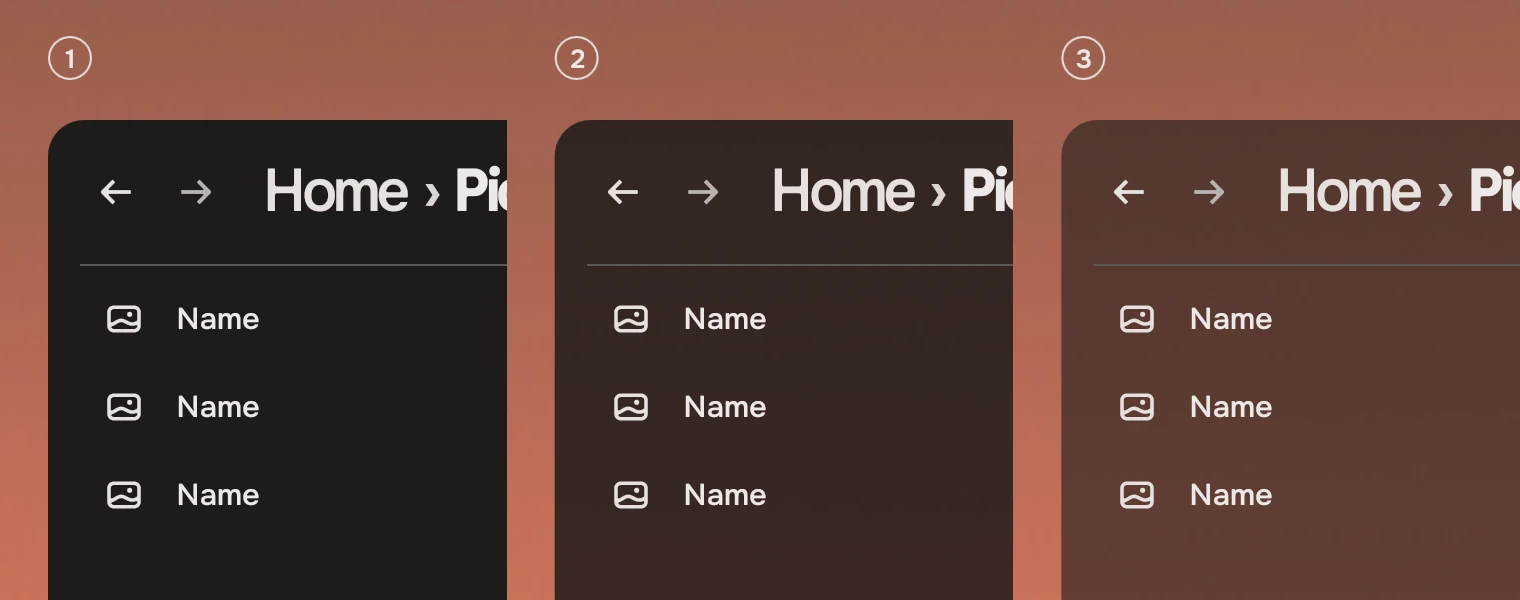

The same window three times, numbered, with the ground at three settings: 1 solid, 2 the default, 15 % see-through, 3 more see-through, 40 %. — The ground at three see-through settings.

SolidNothing shows through: the setting is off.
Default15 % see-through, so the ground is drawn at 85 %.
MoreA person who chooses more, such as 40 %, sees more of the wallpaper. The ink is solved for the ground, so text still reads.

In the Tacit shell the setting is scaled with the wallpaper, so a bright wallpaper does not lighten the ground. The part reads the result.

Sizes

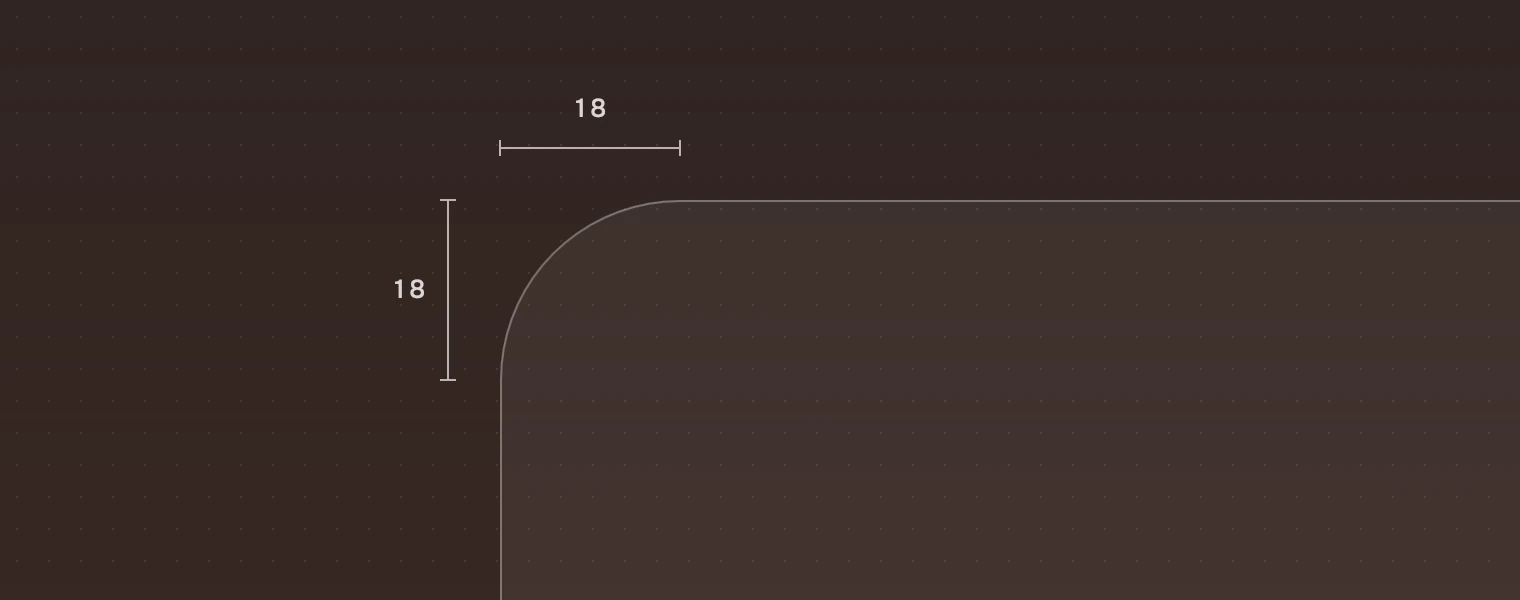

A window corner at five times its size, running off the right and bottom of the figure, with the curve 18 pixels across and 18 down. — The corner at five times its size.

Part	Value
Corner	18 (`radius.window`)
Ground	`windowGround` at `1 - windowSeeThrough`; 85 % by default

Accessibility

The ground is only a surface and says nothing to a screen reader.
Text sits on the ground in inks solved for it. Do not draw text in a colour of your own; use the text inks.

Do and don't

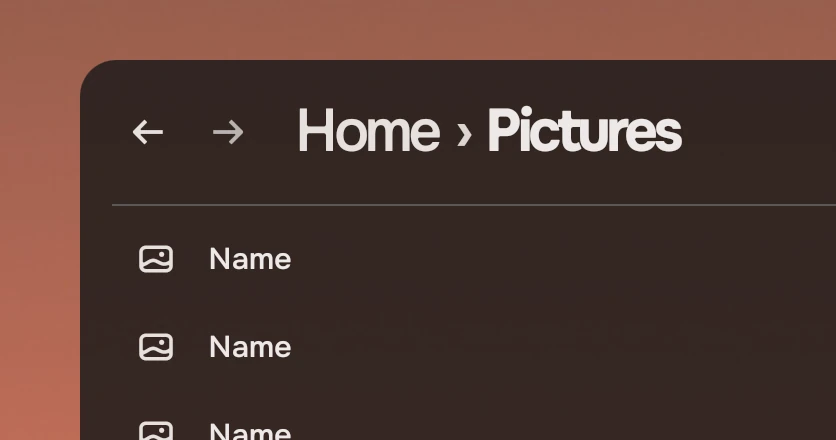

A window on the wallpaper with a ground that is a little see-through, so the wallpaper's warmth shows in it. — DoDraw the ground with WindowGround. It looks like the other windows.

The same window with a solid dark fill, so the wallpaper does not show in it. — Don'tFill the window with a colour of your own. It will not follow the person's setting.

Code

import QtQuick
import Quickshell
import Tacit.Kit

FloatingWindow {
    color: "transparent"
    WindowGround {}
    PageHeader { width: parent.width; crumbs: ["Home"]; here: "Pictures" }
}

Property	What it does
`radius`	The corner, 18 by default. Set 0 where the compositor rounds the window

WindowGround is a Rectangle, so its other properties exist, but color is bound to the ground and the setting.

Experimental, in Tacit.Kit 0.1.
