Waveform

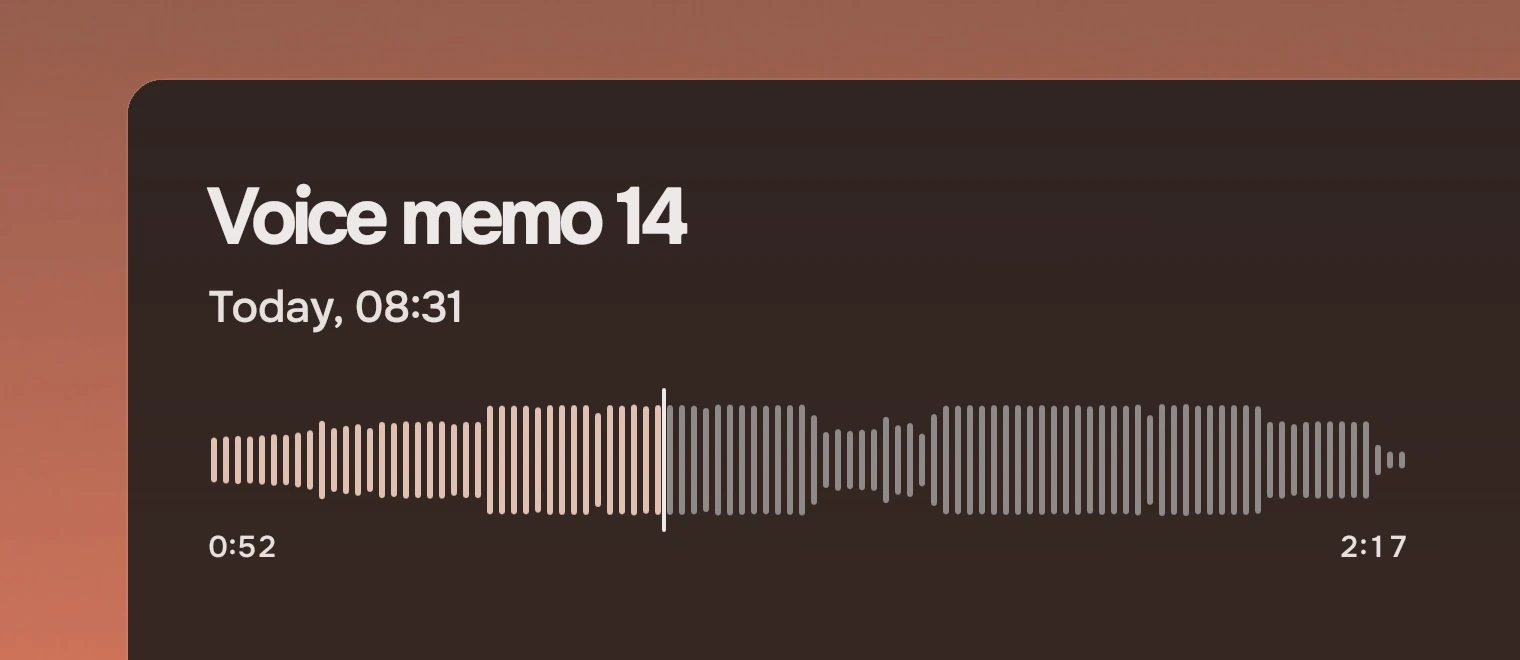

The scrubbing line for anything that plays: the sound as bars, the played part in the accent, the rest quiet.

Use it to show where you are in a sound and to move to another place in it. The app gives it the levels; the part folds them into as many bars as fit and draws them.

Anatomy

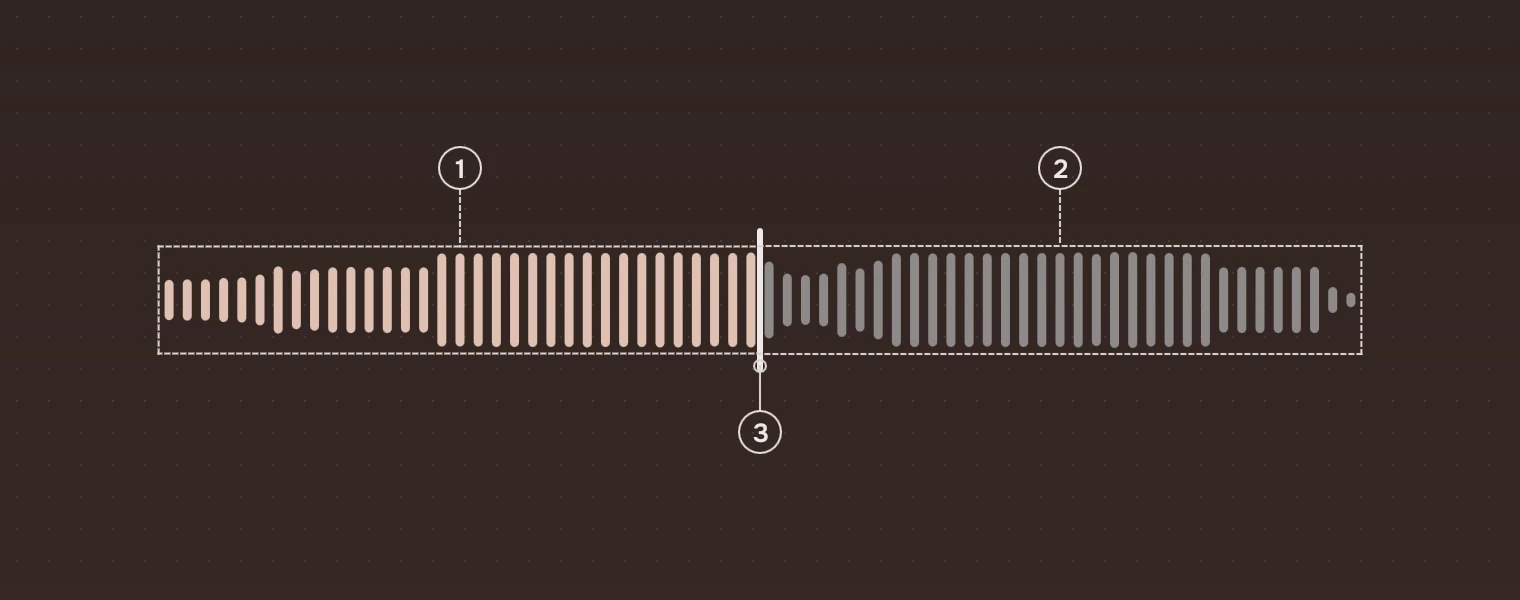

A waveform at one and a half times its size, played to half, with a playhead. Callouts name the played bars, the unplayed bars and the playhead. — The waveform at 1.5 times its size.

PlayedBars in the accent, up to position.
Not playedBars in the quiet ink, the one the kit uses for lines still to come.
PlayheadA line in the main ink, 2 pixels wide and 8 above and below the bars. Only a stage page shows it (playhead).

States

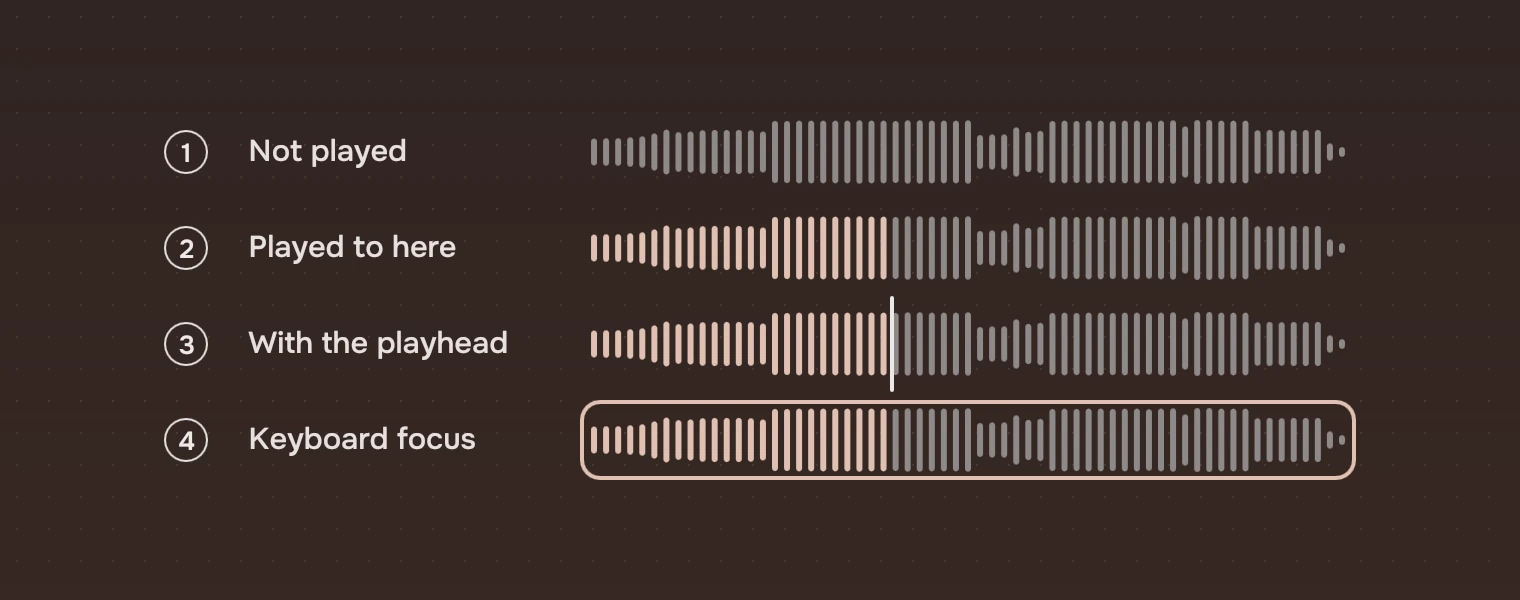

The same waveform four times, numbered: not played, played to 40 percent, played with a playhead, and with the keyboard ring around it. — The four states, one above the other.

Not playedEvery bar quiet.
Played to hereThe bars before position in the accent.
With the playheadFor a stage page.
Keyboard focusThe focus ring, with corner 6, around the whole line.

With seekable: false it only shows: no pointer cursor, no focus, no keys.

Sizes

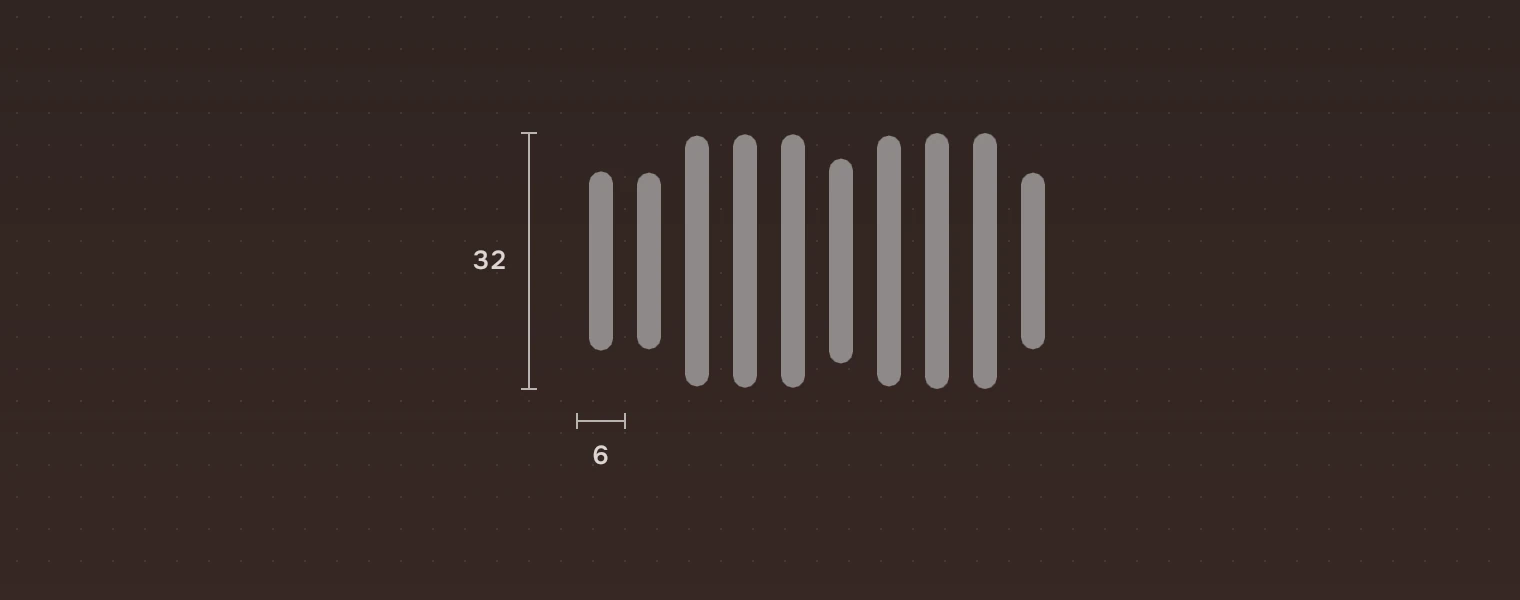

Part of a waveform at four times its size, 32 high, with one bar and the room beside it measured as 6. — A few bars at four times their size.

Part	Value
Height	32 by default; the app sets it (40 and 56 in the figures on this page)
Width	380 by default; it takes the room it is given
Bar	3 wide, with 3 of room beside it, so one bar every 6
Height of a bar	The loudest level in its stretch times the height, never under 3
Playhead	2 wide, 8 above and below

The number of bars is the width divided by 6, rounded down, so a wider waveform has more bars of the same shape.

Keys and pointer

The waveform is one stop for Tab.

Do this	To
`←` `→`	Seek back or forward by 2 % (`keyStep`)
`Home` `End`	Go to the start or the end
Click	Seek there
Drag	Seek as the pointer moves

The part calls seek(at), from 0 to 1. The app moves position when it hears it.

Accessibility

It is a slider named "Position" when seekable, and a screen reader reads position as its value, 0 to 1, in steps of keyStep. Show the time as text beside it as well, as the figures do: a fraction of the length means little without the length.
Played and not played differ by colour and by lightness together; the times in words carry the same facts.

Writing

Put the time played under the left end and the length under the right, in the numbers cut so the digits do not move: "0:52", "2:17".

Do and don't

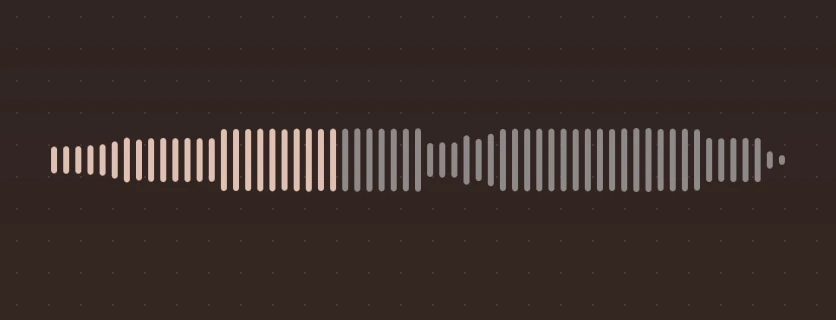

A waveform played to 40 percent. — DoUse it for sound that plays.

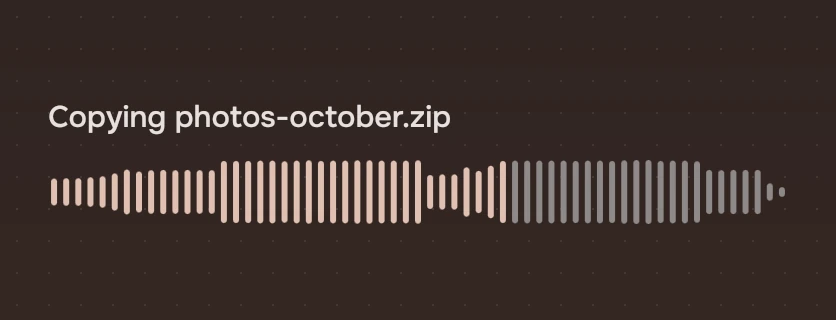

The words Copying photos-october.zip above a waveform played to 62 percent. — Don'tUse it for a job. How far a job has come is a progress bar.

Code

import Tacit.Kit

Waveform {
    width: parent.width
    height: 40
    peaks: track.levels              // 0 to 1, as many as the app has
    position: player.position / player.length
    playhead: true                   // on a stage page
    onSeek: at => player.seek(at * player.length)
}

Property	What it does
`peaks`	The levels, 0 to 1; the part takes the loudest of each stretch
`position`	The played part, 0 to 1
`bar`, `keyStep`	Bar width (3) and the key step (0.02)
`playhead`, `seekable`	Show the playhead; allow seeking
`value`, `minimumValue`, `maximumValue`, `stepSize`	Read only, for a screen reader: `position`, 0, 1 and `keyStep`
`seek(at)`	The person moved to `at`, 0 to 1

Experimental, in Tacit.Kit 0.1.
