Tabs

A few views of one thing, as words. The chosen word is strong and sits on a short accent line; the others wait in the secondary ink.

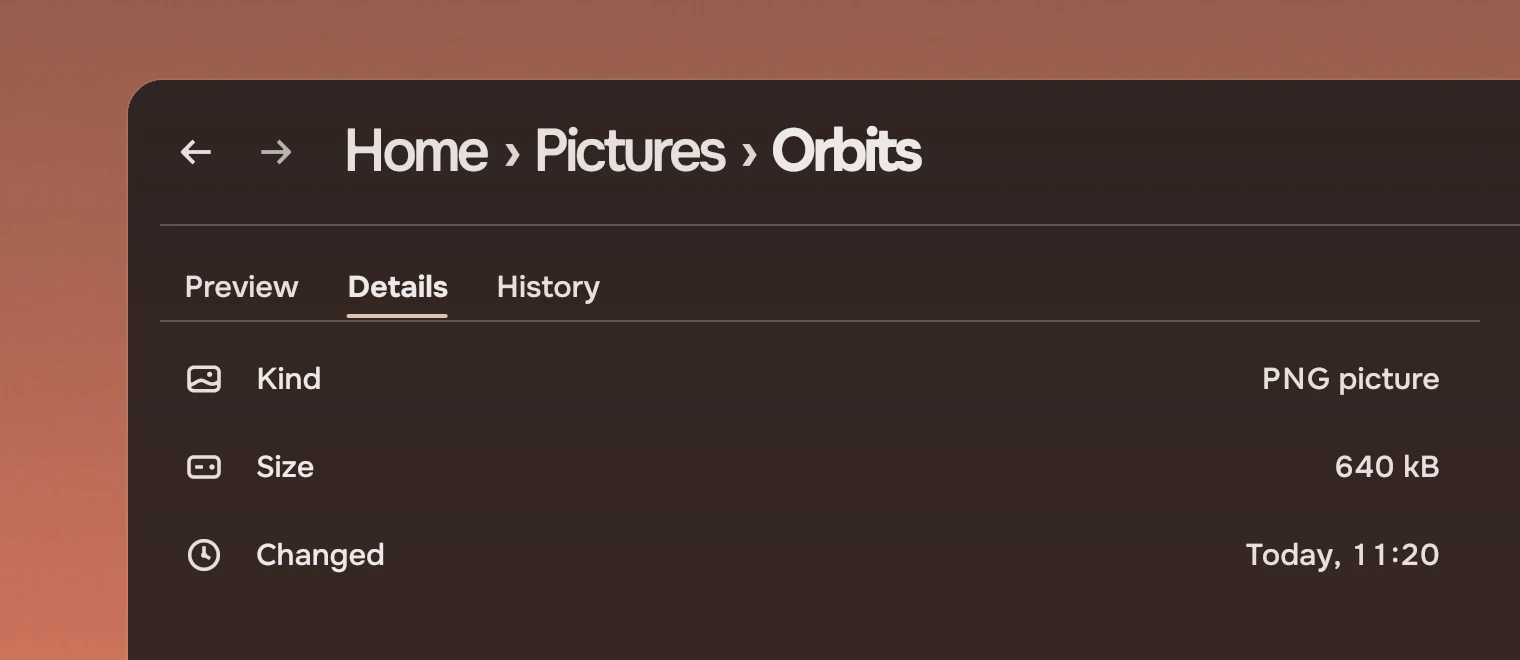

Use tabs for up to four views of the same thing: the panel for a file, with its preview, details and history. Past four, use a menu. Tabs do not move you to another place; for places, use the rail. The views of a whole page (List, Grid, Gallery) are also tabs, but they sit in the view bar, which owns their place and spacing.

Anatomy

Words only. There is no box, no icon and no count.

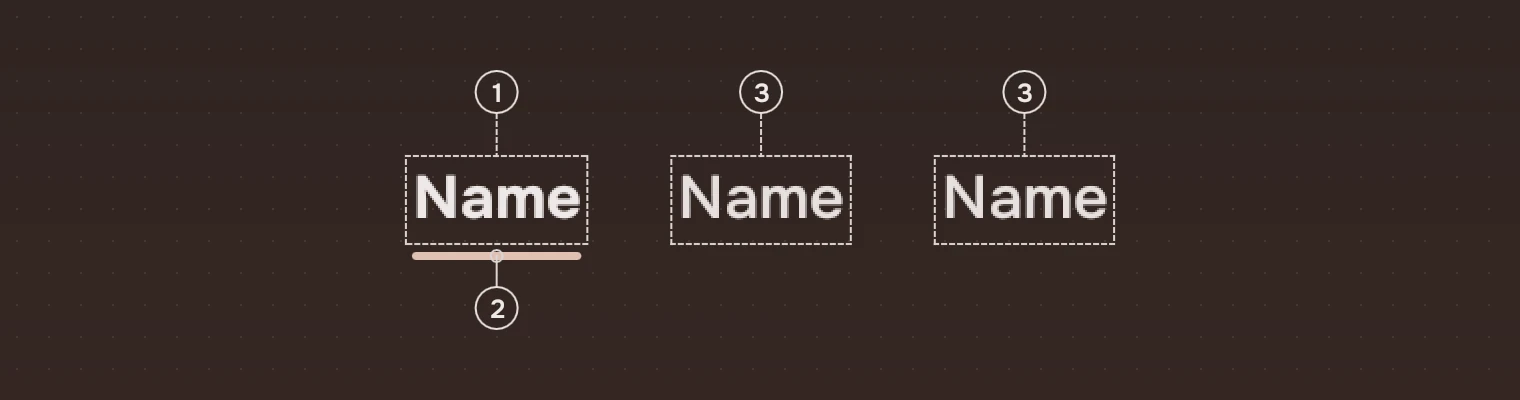

Three tabs of one word each, enlarged to twice their size. Callouts name the chosen word, the accent line under it, and the two other words. — The tabs at twice their size.

Chosen wordThe main ink, strong weight.
Line2 pixels, in the accent, as wide as the word and no wider. It is the only mark of the choice besides the weight.
Other wordsThe secondary ink, regular weight.

States

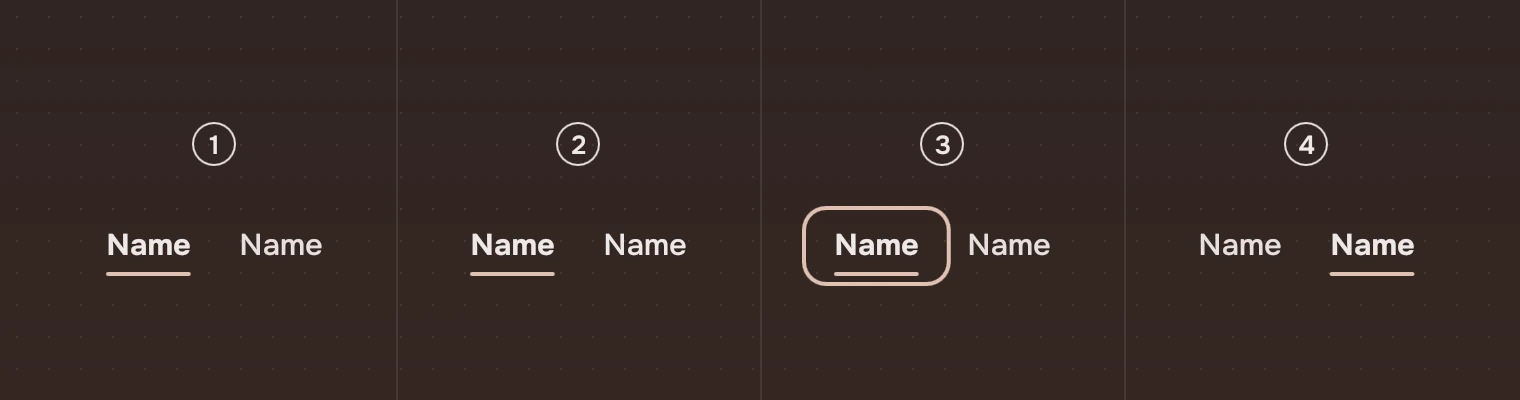

The same two tabs four times, numbered: the first chosen at rest, the pointer over the second, the keyboard ring on the chosen one, and the second chosen. — One column for each state.

RestThe chosen word as described above.
Pointer over a wordThat word goes to the main ink, in regular weight. The line stays with the chosen word.
Keyboard focusThe ring around the chosen tab.
Another word chosenThe weight and the line move to it.

Sizes

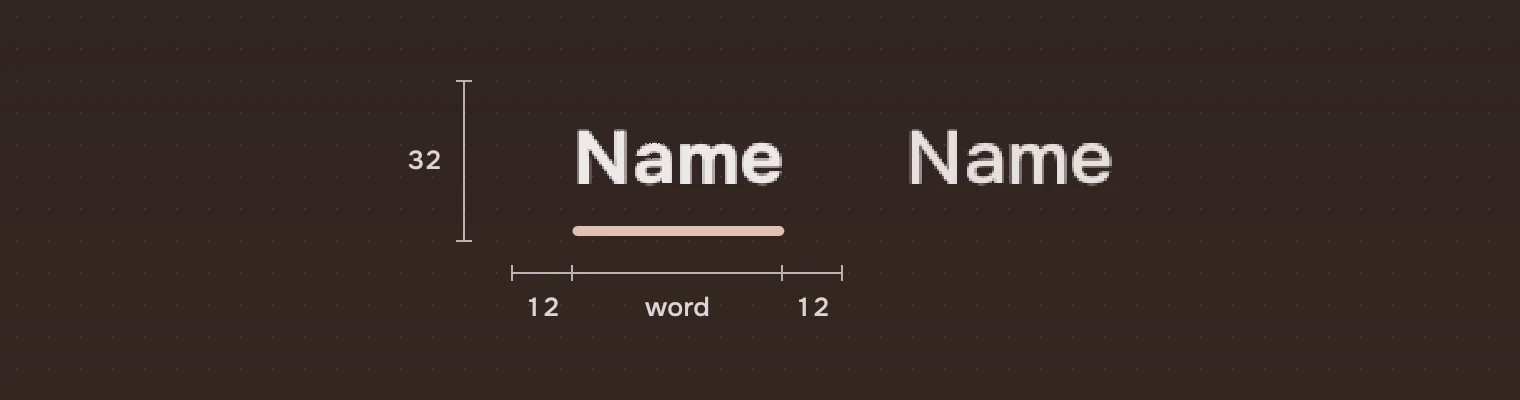

The first of two tabs at two and a half times its size, with its height of 32 and the 12 pixels either side of the word measured. — The tab at 2.5 times its size.

Part	Value
Height	32
Space either side of the word	12 (`space.m`)
Width of a tab	The word and 24
Line	2 pixels high, corner 1, 1 pixel above the bottom, the width of the word

Keys and pointer

The row of tabs is one stop for Tab. The focus ring is on the chosen tab.

Do this	To
`←` `→`	Choose the tab before or after. At the first or last tab, nothing happens
`Home` `End`	Choose the first or the last tab
Click a word	Choose it
Pointer over a word	Main ink on that word

Accessibility

The row is a tab list named by label ("Views" unless the app says); each word is a tab named by its word, and says whether it is selected.
The chosen state is shown by weight and by the line, so it does not depend on colour alone.
Pointer and keyboard do the same: both call picked(index).

Writing

One word for each tab, a noun: "Preview", "Details", "History". Capital on the first letter only. Keep the words the same length where you can, so the row stays still when the labels change.

Do and don't

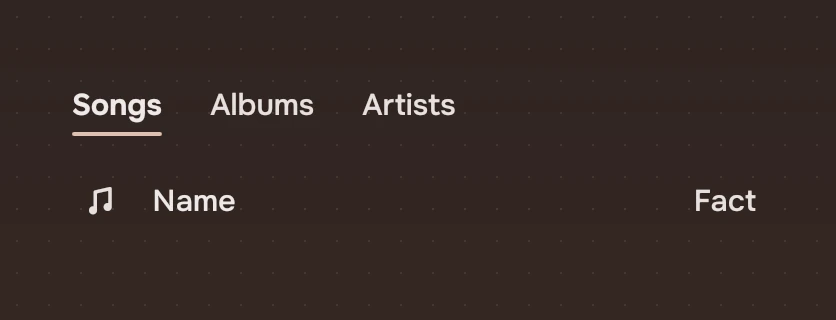

Three tabs, Songs, Albums and Artists, over a list. — DoUse tabs for views of one thing, as words.

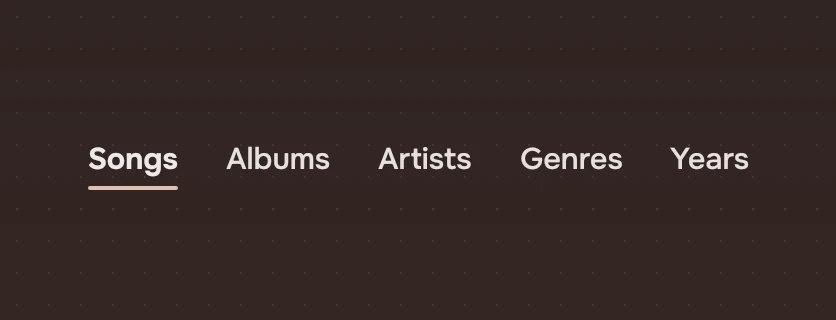

Five tabs in a row: Songs, Albums, Artists, Genres and Years. — Don'tPut five or more words in a row. Up to four fit as tabs; more is a menu.

Code

import Tacit.Kit

Tabs {
    labels: ["Preview", "Details", "History"]
    current: panel.view              // an index into labels
    onPicked: index => panel.view = index
}

Property	What it does
`labels`	The words, in order
`current`	The chosen index
`picked(index)`	The pointer or a key chose this tab; the app sets `current`
`label`	What a screen reader calls the group ("Views")

Experimental, in Tacit.Kit 0.1.
