Switch

On or off, for a setting that really is one or the other. It takes effect at once.

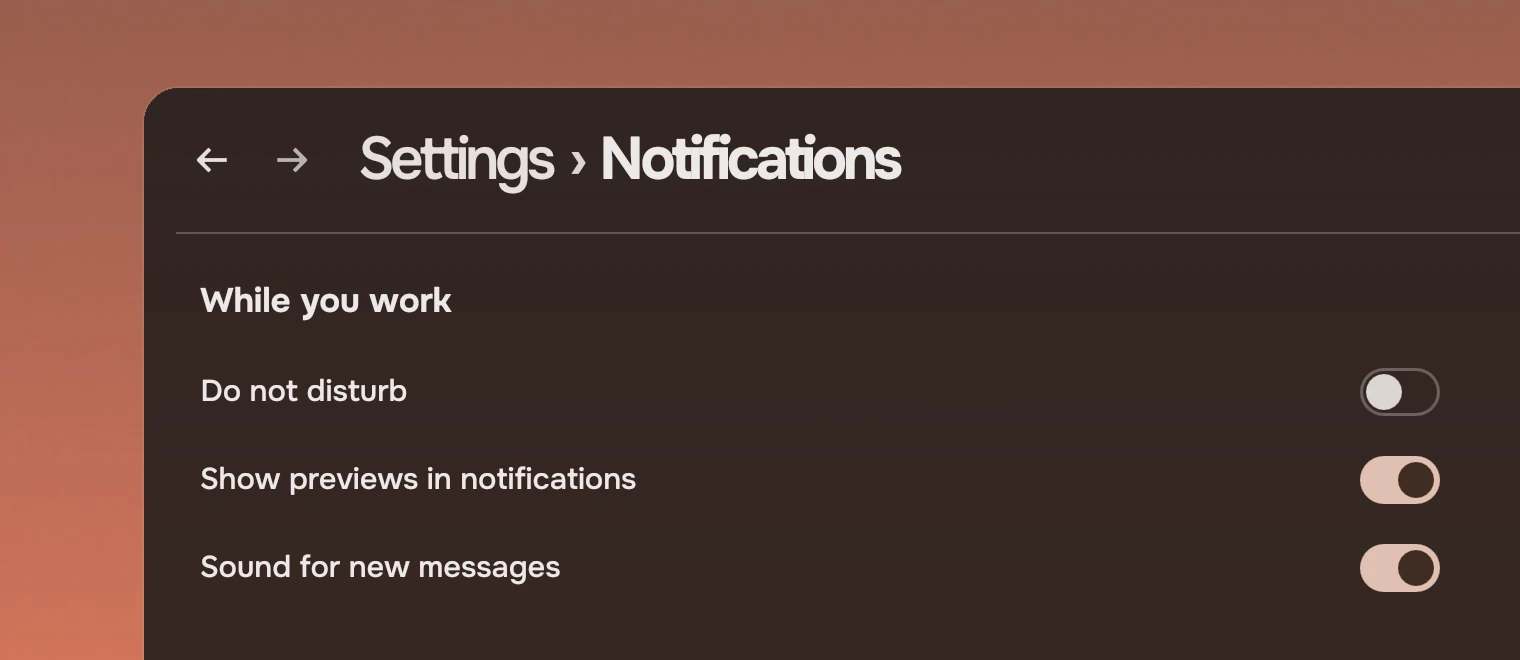

Part of a Settings window titled Notifications with the heading While you work and three rows: Do not disturb off, Show previews in notifications on and under the pointer, Sound for new messages on.

Use a switch for a setting with two states, in a row that says what the setting is. For an action, use a Slab. For a choice among three or more, use a menu. A tick box that is part of a form or a list of choices is a Check.

Anatomy

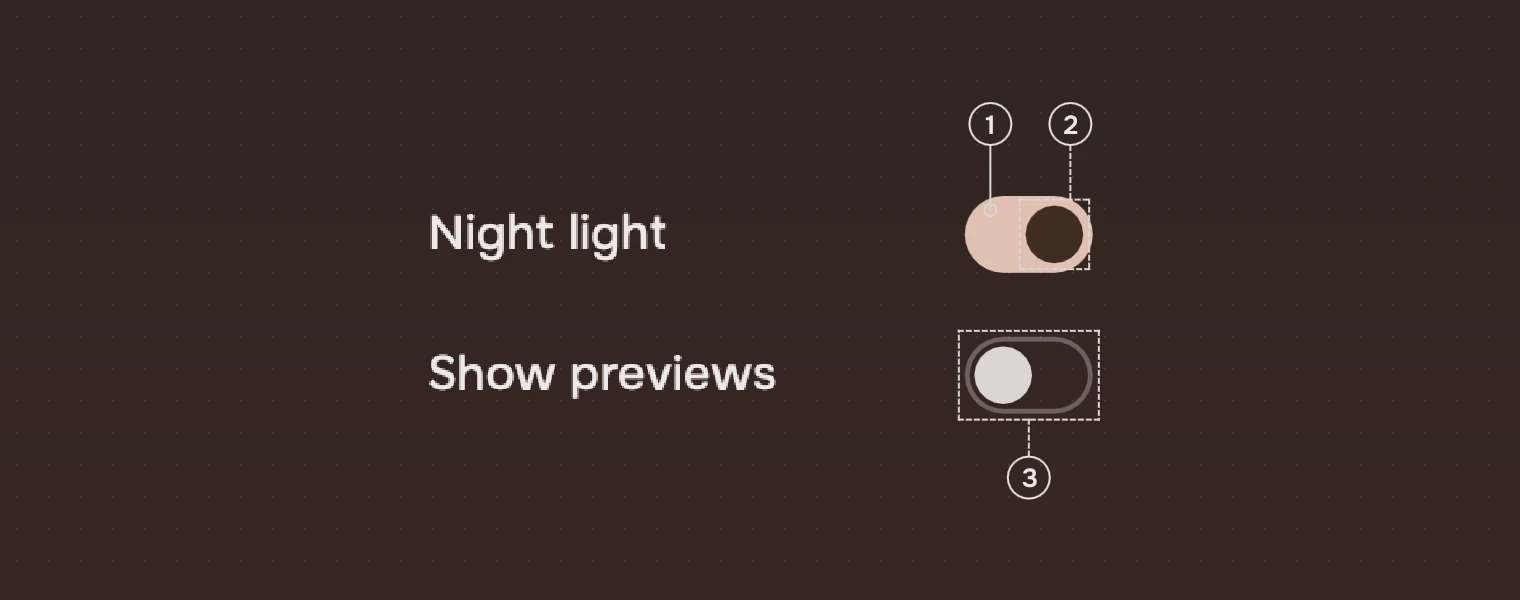

Two settings rows at 1.6 times their size, Night light on and Show previews off. Numbered callouts above name the on switch's accent track and its dark knob; one below names the whole off switch, an outline with a quiet knob. — Two settings rows with a switch at the end, at 1.6 times their size.

TrackOn: a fill in the accent. Off: no fill, a 1.5-pixel outline in the main ink at 30 %.
KnobOn: dark (the ink on the accent), at the right. Off: a quiet knob in the meta ink, at the left.
OffThe outline and the pale knob show off at a glance, even in grey.

The name of the setting is the row's, in the main ink. The switch has a label for screen readers, which is the same name.

States

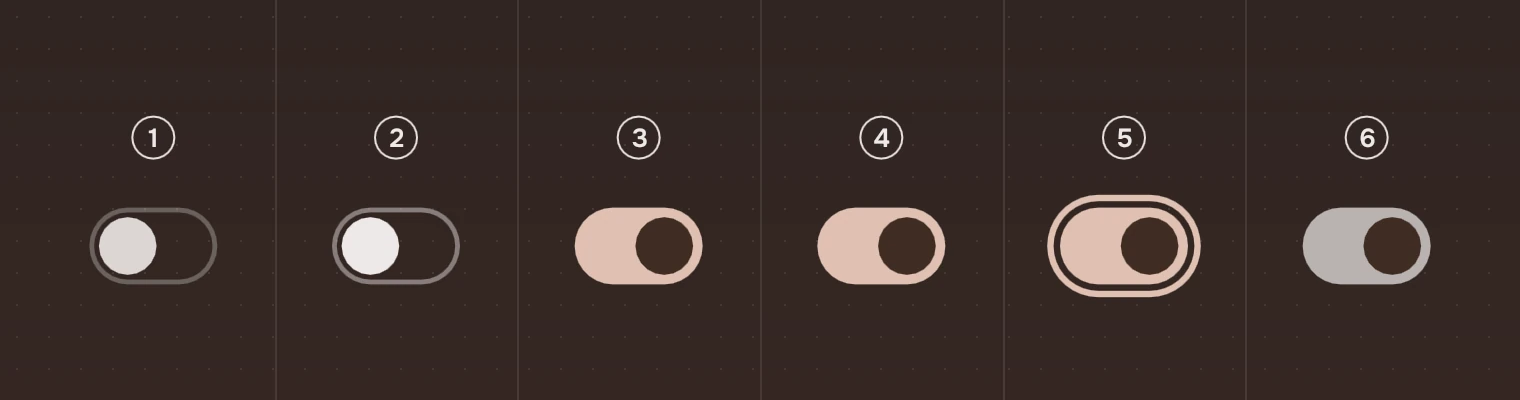

The switch in six columns: off, off under the pointer, on, on under the pointer, on with the keyboard focus ring, and on but unavailable. — The switch in each state.

OffThe outline and the quiet knob.
Off, pointer over itThe outline at 45 %, the knob in the main ink.
OnThe accent track and the dark knob.
On, pointer over itThe same; the pointer is a hand.
Keyboard focusThe ring around the track.
UnavailableThe outline, knob and fill in the faint ink, no response.

The knob travels on the spring motion, 350 ms: it is small, direct feedback, the one place the kit lets something overshoot. The track's colour changes over 140 ms (tone). With reduced motion on, the knob jumps.

Sizes

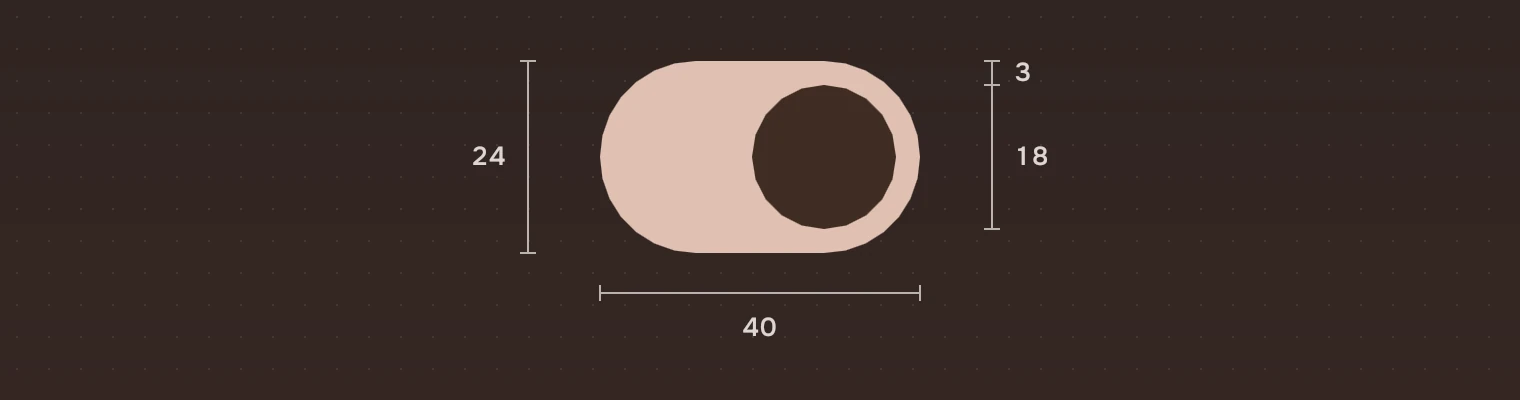

A switch that is on at 4 times its size, 40 wide and 24 high, with its knob 18 across and 3 pixels from the top, each on a dimension line. — The switch at 4 times its size.

Part	Value
Track	40 by 24, a full pill
Knob	18 across, 3 from the track's edges
Off outline	1.5 pixels

Put the switch 16 from the row's right edge and centre it on the row.

Keys and pointer

Do this	To
`Tab`	Move the focus to the switch
`Space` or `Enter`	Flip it
Click	Flip it

Accessibility

A switch is a checkbox with a name, and says whether it is checked. A screen reader can also toggle it.
The state is told by shape and place (the knob's side and the fill), not by colour alone.
Unavailable is the faint ink, and the switch leaves the Tab order. A screen reader hears it as disabled.

Writing

Name the setting, not the action: "Night light", not "Turn on night light". The switch says on or off; the name must make sense for both. Do not put "Enable" or "Disable" in the name.

Do and don't

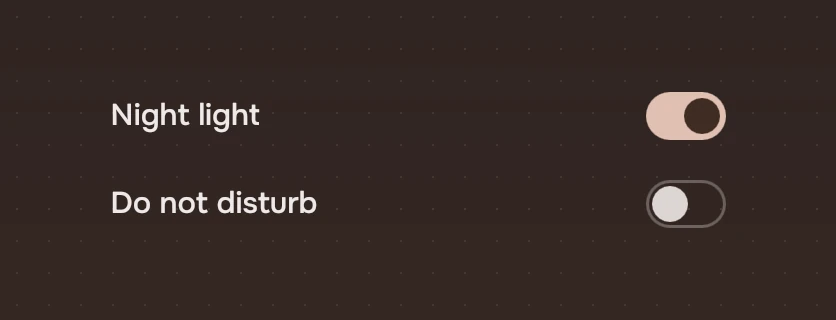

Two rows with switches: Night light and Do not disturb. — DoUse a switch for a real on or off setting.

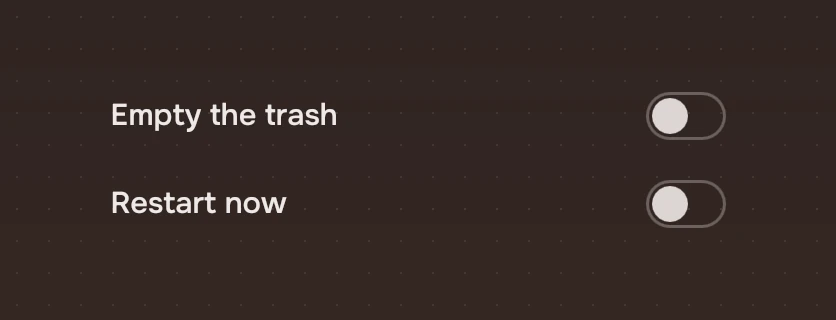

Two rows with switches named Empty the trash and Restart now. — Don'tUse a switch to run an action. Nothing stays on or off: use a Slab.

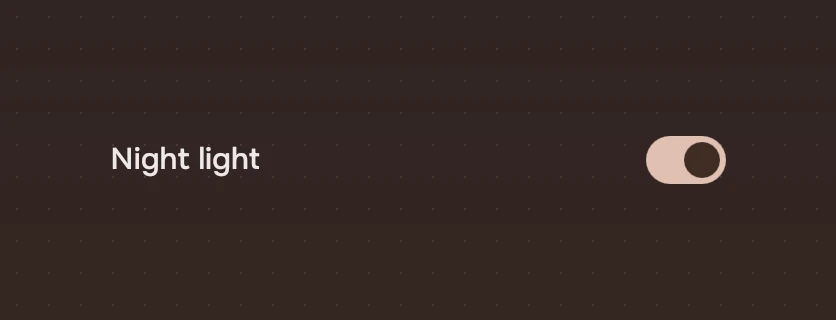

A row named Night light with its switch on. — DoName the setting.

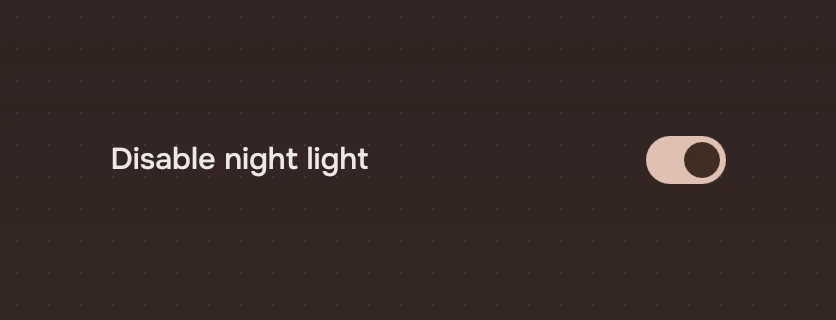

A row named Disable night light with its switch on. — Don'tName the action. "Disable night light" on means night light is off.

Code

import Tacit.Kit

Switch {
    label: "Night light"
    checked: settings.nightLight
    onToggled: value => settings.nightLight = value
}

Property	What it does
`checked`	On or off. The app sets it when it hears `toggled`
`label`	What a screen reader says. Set it to the row's name
`enabled`	False: the faint ink, no response and out of the Tab order
`toggled(checked)`	Sent with the new state by a click, `Space` or `Enter`

Experimental, in Tacit.Kit 0.1.
