Slider

A continuous amount, such as volume or brightness, set by dragging a slim bar. The value is written as a word at its end.

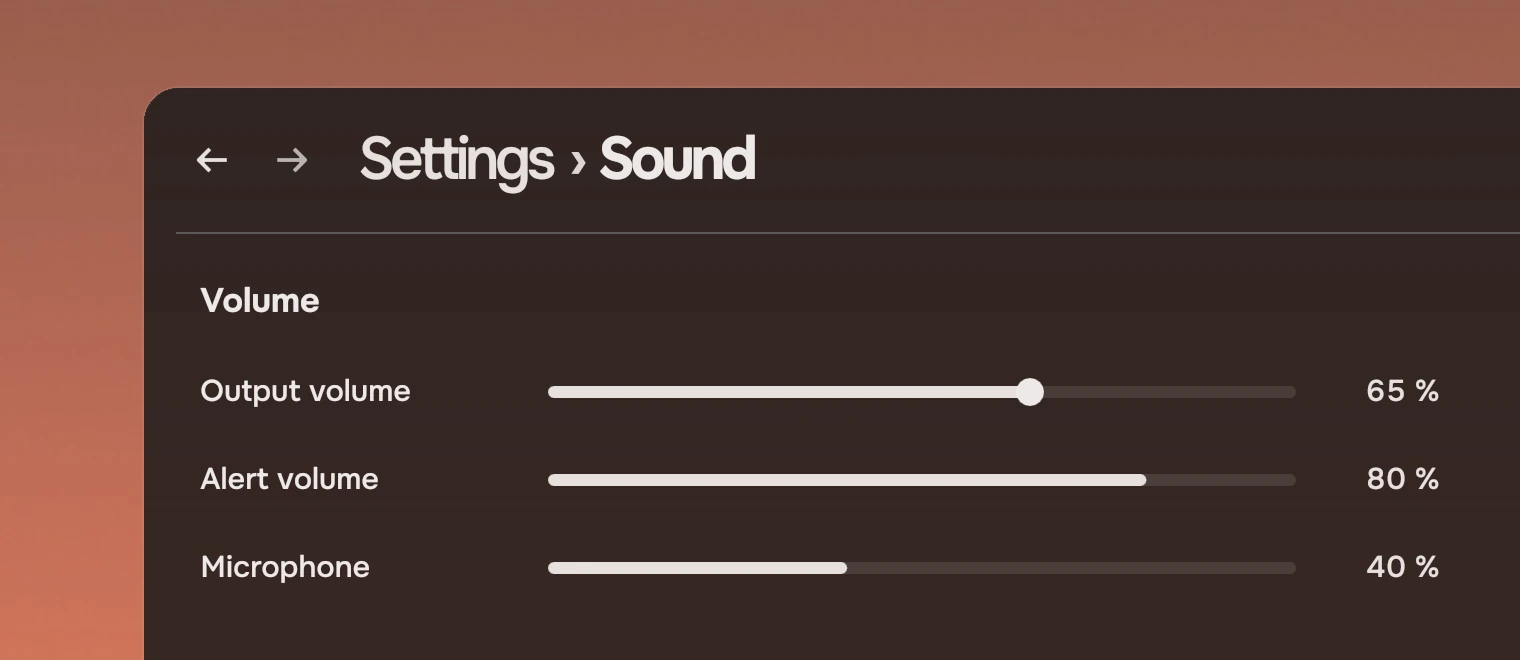

Part of a Settings window titled Sound with the heading Volume and three rows: Output volume at 65 % with its knob showing under the pointer, Alert volume at 80 %, Microphone at 40 %.

Use a slider for an amount that varies smoothly and whose effect you hear or see as you change it. For two states, use a switch. For a few named choices, use a menu.

Anatomy

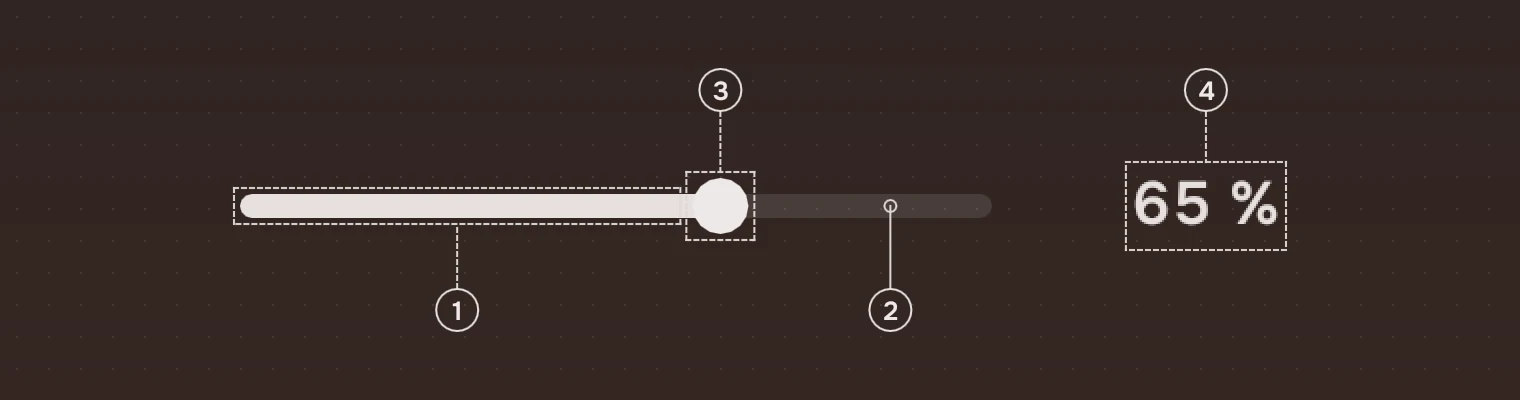

A slider at twice its size with its knob showing at 65 % and the word 65 % at its end, with numbered callouts on the reached part, the track, the knob and the word. — A slider at twice its size, with its knob showing.

Reached partFrom the start to the value, in the secondary ink.
TrackA slim bar of the main ink at 12 %.
Knob14 pixels in the main ink. It shows only under the pointer, while dragging or with the keyboard.
WordThe value as a word, right-aligned, in the secondary ink with tabular figures. Optional, but set it when the number matters.

The knob is hidden at rest so a row of sliders stays quiet. The bar alone says the amount.

States

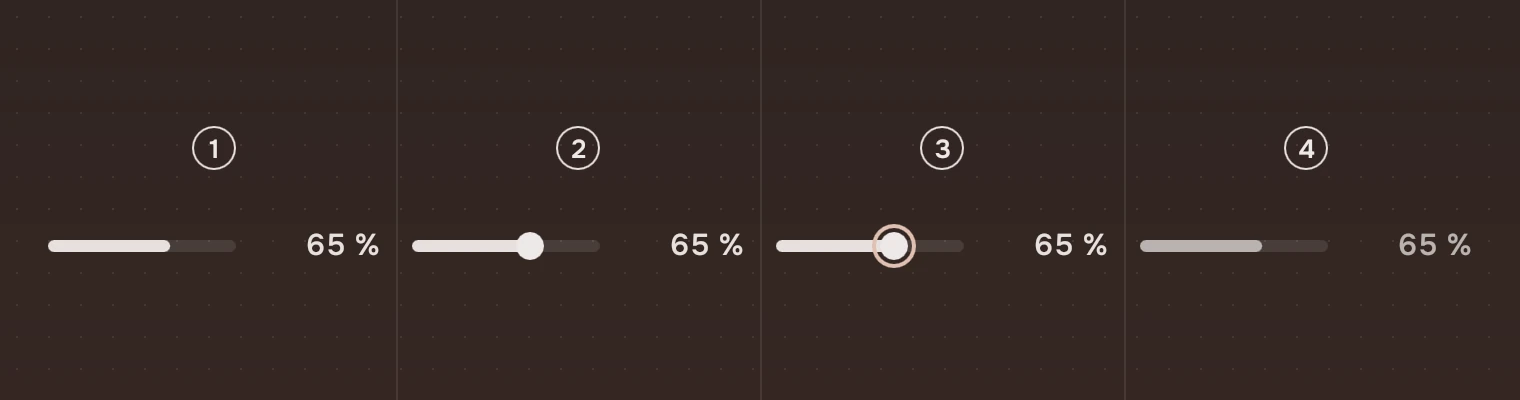

The slider in four columns: at rest with no knob, under the pointer with the knob, with the keyboard focus ring on the knob, and unavailable. — The slider at rest, under the pointer, with the keyboard and unavailable.

RestThe bar and the word; no knob.
Pointer over itThe knob fades in. While you drag it, it stays, a little larger, and the pointer is a closed hand.
Keyboard focusThe knob and the ring around it.
UnavailableThe bar and the word in the faint ink. No knob, no response.

Sizes

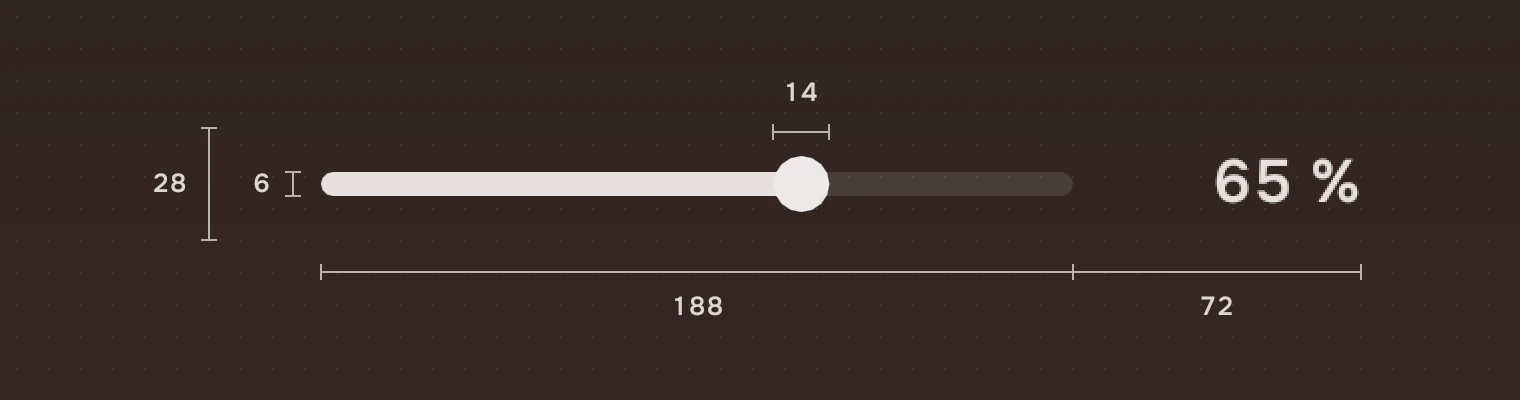

A slider at twice its size with its box 28 high, its track 6, its knob 14 across, its bar 188 wide and 72 for the word, each on a dimension line. — A slider at twice its size.

Part	Value
Height	28
Width	260 unless you set it
Track	6 high, a full pill
Knob	14 across
Word	72 of the slider's width at the end, when there is a word; the bar is the rest

Keys and pointer

Do this	To
`Tab`	Move the focus to the slider
`←` `→` `↓` `↑`	Step down or up by `step` (0.01)
`Page Down` `Page Up`	Step ten times
`Home` `End`	Go to the start or the end
Click on the bar	Go to that value
Drag	Follow the pointer

Accessibility

A slider is a slider named by its label. A screen reader reads value between 0 and 1 in steps of step, can raise or lower it by one step, and hears word as the description, so it says "65 %".
The word is the value in plain text, so the amount never rests on the bar alone.
Unavailable is the faint ink, and the slider leaves the Tab order.

Writing

Write the value so it can be said aloud: "65 %", "2 s", "Medium". Put the setting's name on the row beside the slider, as in a switch row. Use units a person knows.

Do and don't

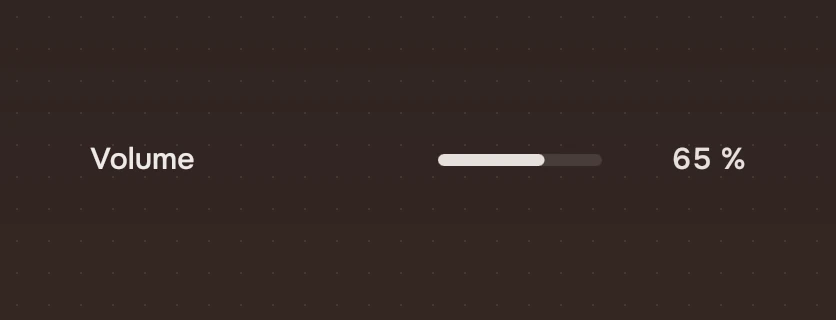

A row with the name Volume, a slider at 65 % and the word 65 %. — DoName the row and write the value at the end.

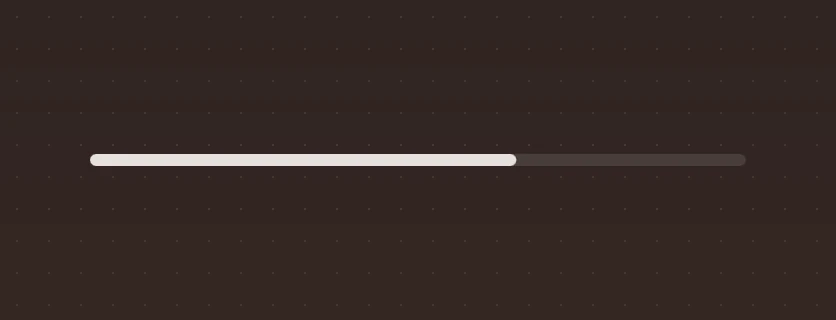

A slider at 65 % with no name beside it and no word. — Don'tLeave the bar alone. Nobody can say what it sets or how much.

Code

import Tacit.Kit

Slider {
    width: 320
    label: "Output volume"
    value: audio.volume
    word: Math.round(audio.volume * 100) + " %"
    onMoved: v => audio.volume = v
}

Property	What it does
`value`	0 to 1. The app sets it when it hears `moved`
`step`	The size of a key step; 0.01 by default
`word`	The value as a word at the end; the room for it appears with it
`label`	What a screen reader says. Set it
`enabled`	False: the faint ink, no response and out of the Tab order
`minimumValue`, `maximumValue`, `stepSize`	Read only: 0, 1 and `step`, for a screen reader
`moved(value)`	Sent with the new value, clamped to 0 to 1 and rounded to `step`

Experimental, in Tacit.Kit 0.1.
