Scrolling

How a touchpad and a mouse wheel move a list. Glide follows fingers one to one, glides on after a flick, and takes one eased step for each wheel notch.

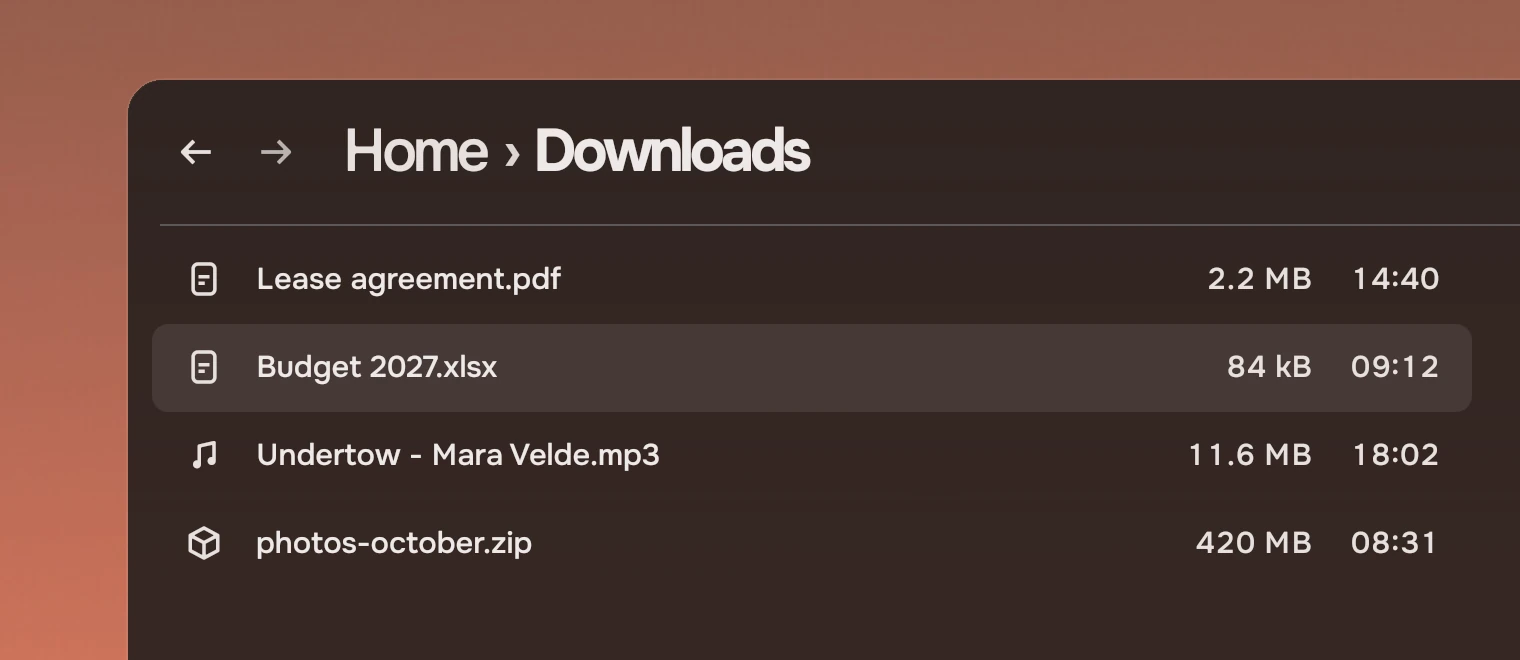

Part of a file manager window headed Home, Downloads, with a list of four files, cut by the window's lower edge.

Glide goes over any Flickable: a list, a page. The kit's row list, rail and picture grid already have one. An app only adds it to a view of its own. For the bar that shows where you are in a long view, see ScrollBar.

How it moves

A touchpad and a wheel send different things, and they move the view differently.

Two curves. Left, for one wheel notch: the position rises quickly and settles over 200 milliseconds to 120 pixels. Right, after a touchpad flick: the position rises and settles slowly over about two and a third seconds. — The two motions drawn from the code. Position goes up the side, time along the bottom.

TouchpadThe view follows the fingers exactly, with no easing. When the fingers lift while still moving, it carries on at the speed of the last 80 ms and slows by a factor of 0.998 every millisecond. It stops when the speed is under 0.02 pixels a millisecond. A slow scroll stops where the fingers stop.
Mouse wheelOne notch moves the view mouseStep pixels, 120 by default, over 200 ms, fast at first and settling (the curve 0, 0, 0, 1, 1, 1). More notches add to where the last one is going.

The glide is drawn above for a flick at 2 pixels a millisecond, which travels about 990 pixels over 2.3 seconds. A scroll that is mostly sideways is left to the view, and chain hands what a view cannot take at its end to the view around it.

States

Glide has three states, as properties you can read.

Property	Meaning
`touching`	Fingers are on the pad
`velocity`	The speed of the glide, in pixels a millisecond, in the direction of `contentY`
`active`	The view is being moved by Glide: fingers, glide or a wheel step

A view that eases its own contentY should turn that easing off while active is true; two easings on one value fight.

Keys and pointer

Glide handles the wheel and the touchpad only. It takes no clicks, which pass through it, and no keys. Keyboard scrolling is the list's own: in a row list the arrow and page keys move the selection and the view follows.

Accessibility

Scrolling here does not change what is read or focused; a screen reader reads the same items.
The wheel moves in whole steps, which keeps a notch predictable for someone who counts them.
The wheel step takes its time from the scroll motion token (200 ms), so with Kit.reducedMotion on a notch moves the view at once. The touchpad glide is not switched off by it yet: after a flick the view still carries on. This is the one place the kit does not follow reduced motion fully.

Do and don't

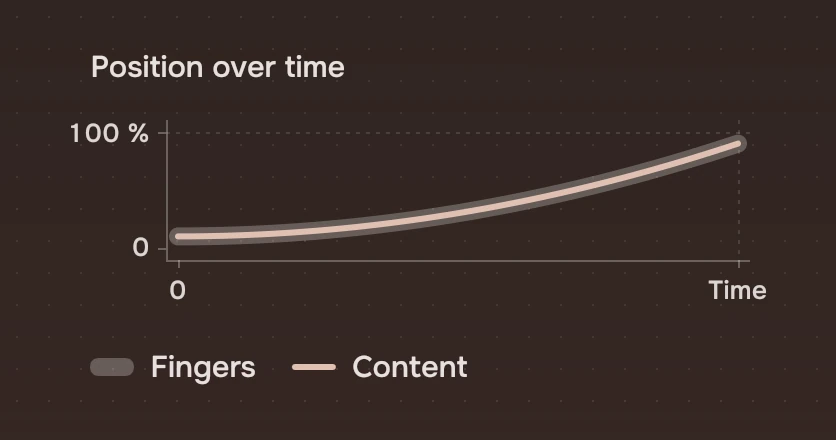

A chart of position over time where the content's line lies exactly on the fingers' line. — DoLet the content follow the fingers one to one while they are on the pad.

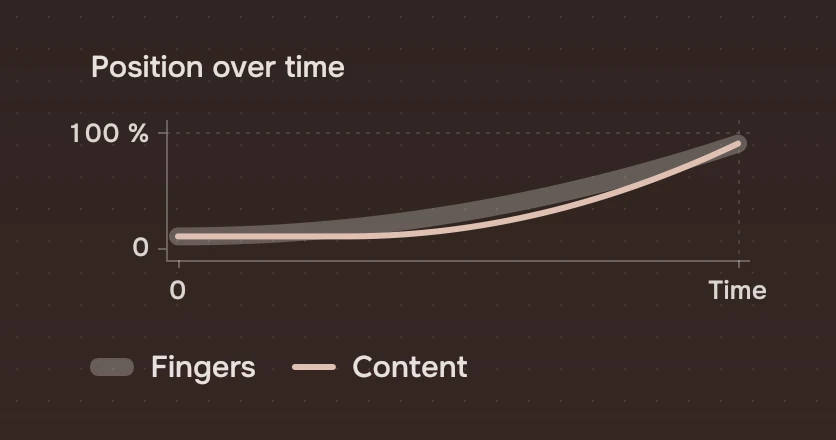

The same chart where the content's line trails behind the fingers' line. — Don'tEase the touchpad. The content then lags behind the hand, which feels like a drag, not a surface.

Code

import Tacit.Kit

Item {
    ListView {
        id: list
        anchors.fill: parent
        model: files
        delegate: ListRow { width: list.width; name: modelData }
    }
    Glide { view: list }             // over the view, in its parent
}

Property	What it does
`view`	The `Flickable` to move (required)
`mouseStep`	Pixels for one wheel notch; 120
`chain`	Hand on what the view cannot take at its end to the view around it
`velocity`, `touching`, `active`	What it is doing now (read only in use)

Experimental, in Tacit.Kit 0.1. The touchpad glide does not yet follow reduced motion.
