Scroll bar

A thin bar that shows where you are in a long view. It appears while the view moves and goes when it stops.

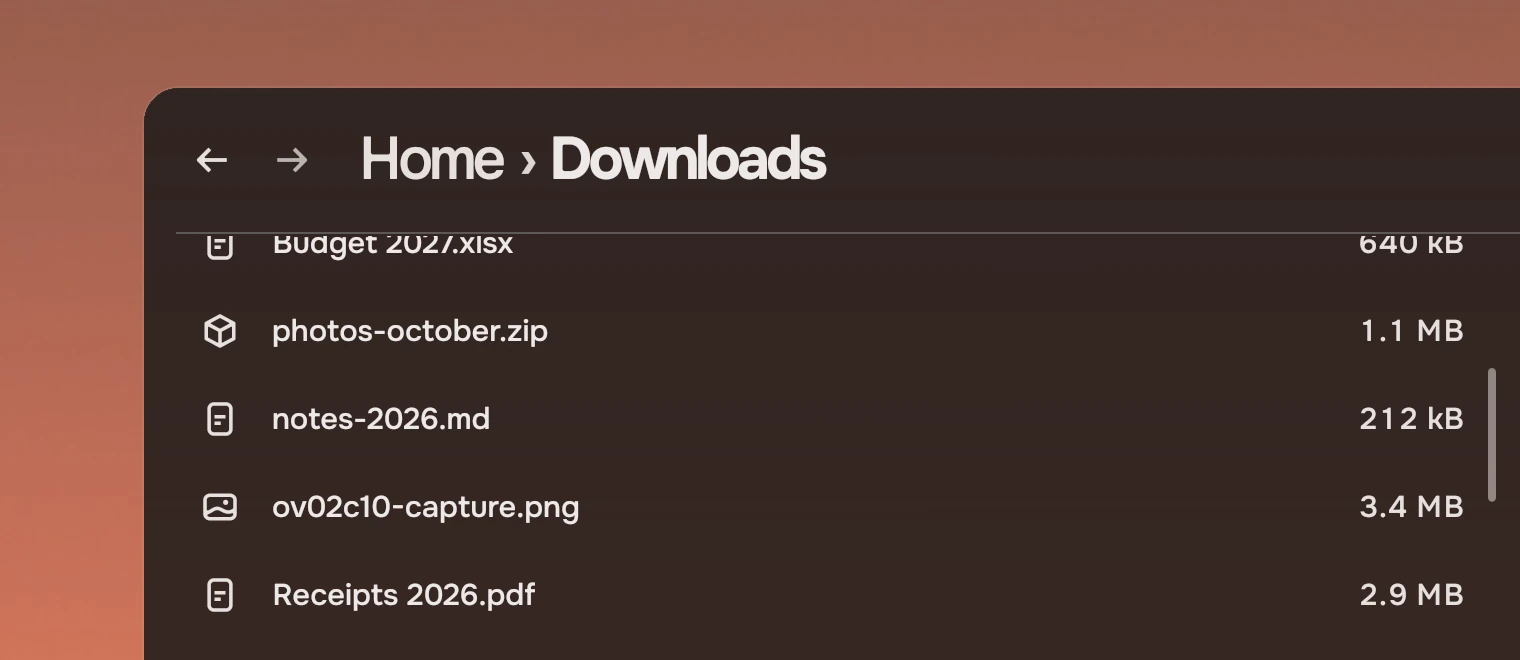

Part of a Files window headed Home, Downloads with a list of files cut at the top by scrolling. A thin pale bar at the list's right edge shows the place in the list. — A long list that is being scrolled.

A scroll bar goes over a Flickable and shows the place in it. It does not move the view by itself: Glide moves it with the touchpad and the wheel, and the bar follows. It floats over the content and takes no room, so a view loses no width to it. A view whose content fits has none.

Anatomy

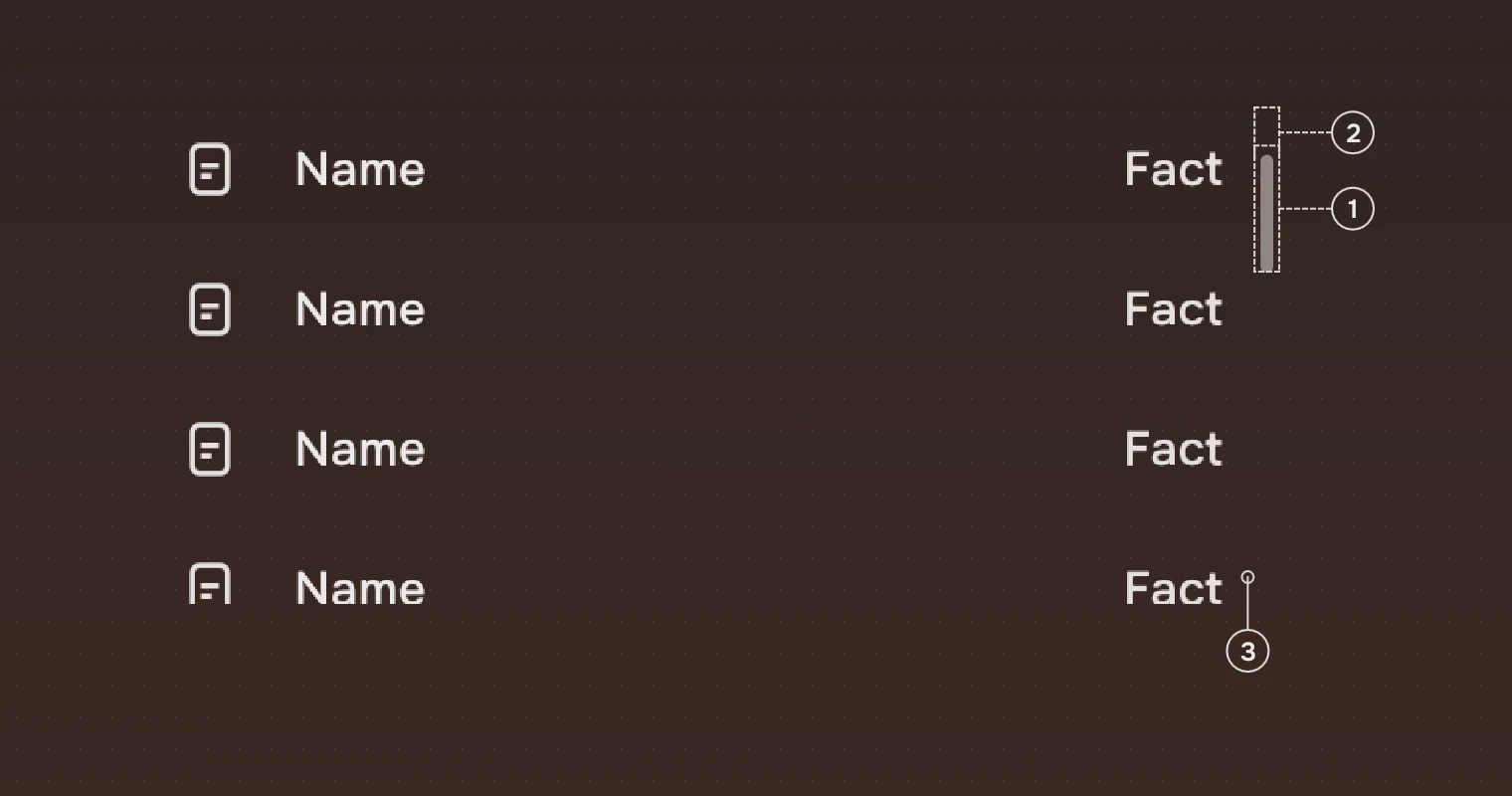

A list at 1.6 times its size with numbered callouts at its right edge. 1 names the thumb, a thin pale pill. 2 names the gap above it, 12 pixels. 3 names the strip along the right edge that wakes the bar. — The bar at the right of a list at 1.6 times its size.

Thumb4 pixels wide, a round end, the main ink at 50 %. Its length is the view's share of the content, at least 24.
Margin12 pixels at the top and the bottom, so the bar stays off the window's rounded corner.
StripThe 16 pixels along the right edge. The pointer in it shows the bar. It takes no click.

There is no track. The thumb is the whole bar.

States

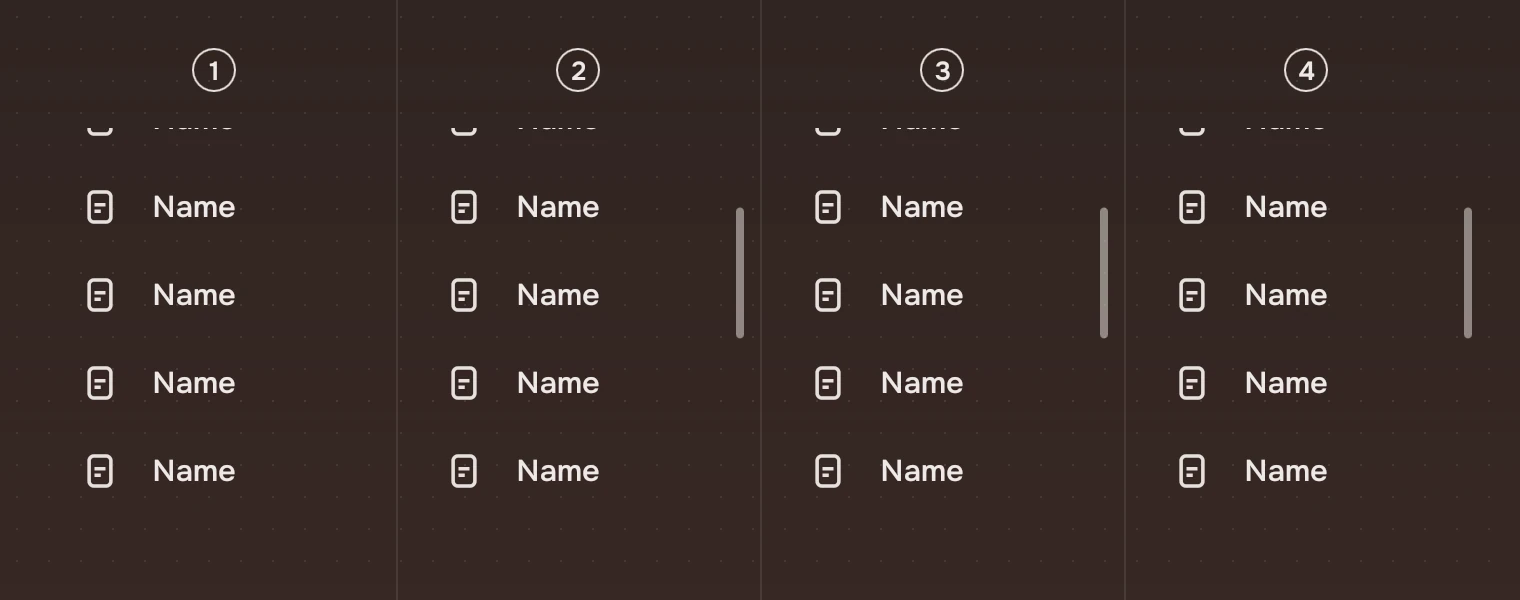

Four lists side by side, numbered. 1: no bar. 2: the bar shown while the view moves. 3: the bar shown with the pointer near the right edge. 4: the bar shown while it is dragged. — The scroll bar in each state.

HiddenThe view is still, the pointer is away. Nothing is drawn.
MovingThe view's contentY changes, by a finger, a wheel, Glide or code. The bar stays 900 ms after it stops.
Pointer nearThe pointer is within 16 pixels of the right edge.
DraggingThe thumb is held. The view follows it.

The bar fades with the fade motion, 200 ms. The look is the same in the last three states; what changes is how long it stays. With reduced motion on it appears and goes at once.

Sizes

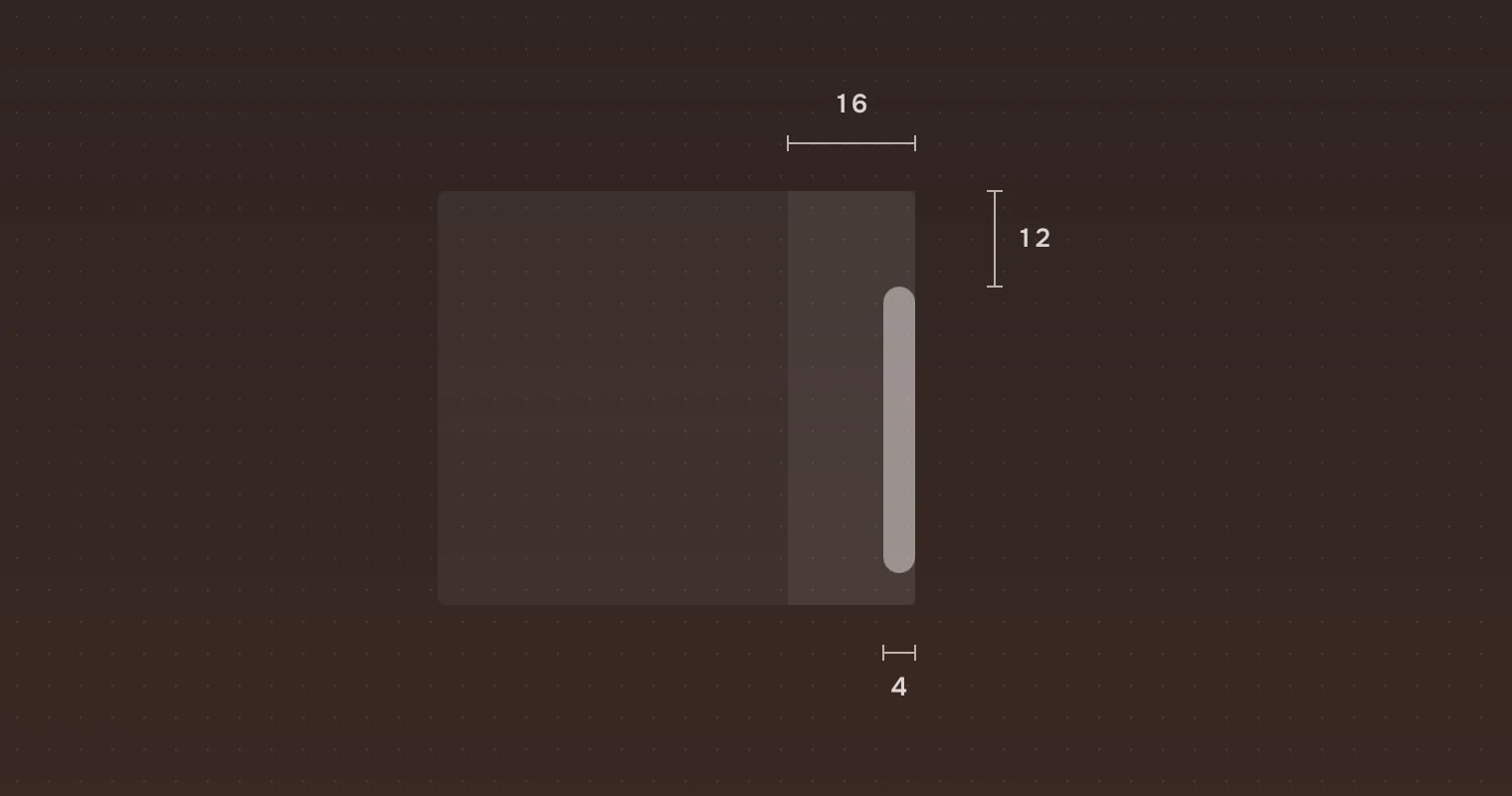

The top-right corner of a view at four times its size: the thumb 4 across, 12 from the top, and the strip that wakes it 16 across. — The corner of a view at four times its size.

Part	Value
Thumb	4 wide (`width.scrollBar`), fully round
Shortest thumb	24
Margin	12 at top and bottom
Strip	16 wide at the right edge
Time	Stays 900 ms (`motion.barStays`), then fades

Keys and pointer

The bar is not a Tab stop. The list owns the keyboard, as it does for scrolling: the arrow and page keys move through the rows and the view follows.

Do this	To
Move the wheel or fingers	Show the bar while the view moves
Move the pointer to the right edge	Show the bar
Drag the thumb	Scroll the view

Accessibility

The bar is a scroll bar named "Scroll", and it is hidden from a screen reader when the content fits.
The bar is an addition, not the only way to know the place: the list is what a screen reader reads.
The thumb is told by shape and place, not by colour.

Do and don't

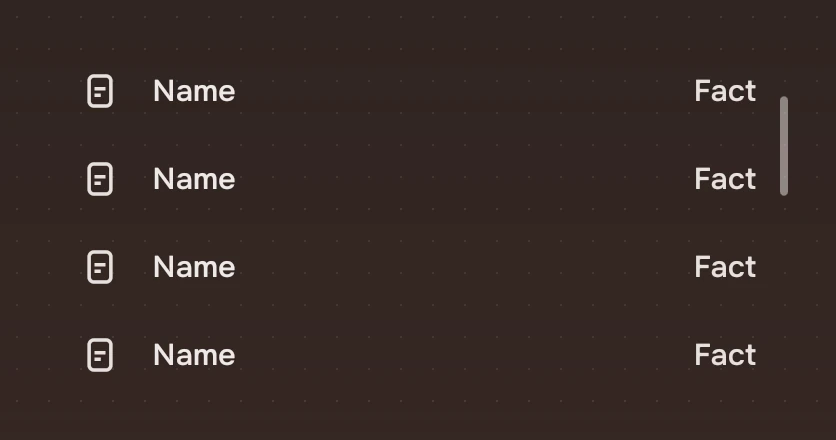

A list with a thin bar over its right edge, and the rows running the full width. — DoLet the bar float over the content.

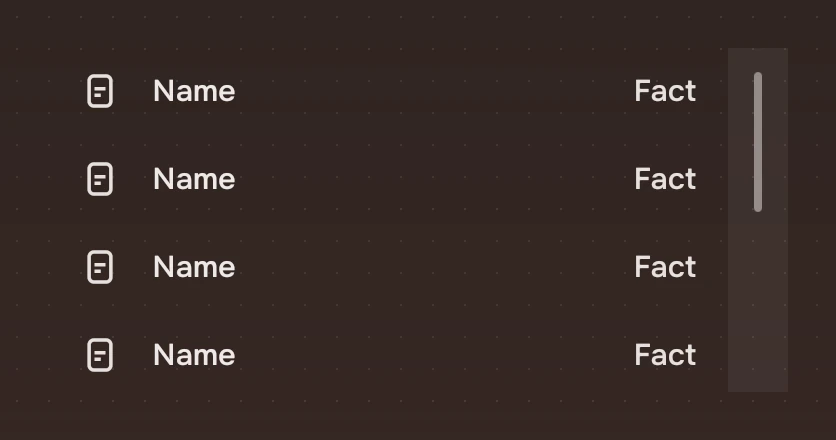

A list whose rows end short of a wider strip at the right, with a thin bar inside the strip. — Don'tReserve a gutter for it. Rows then change width when the bar comes and goes, and the page looks cut.

Code

import Tacit.Kit

Item {
    RowList {
        id: list
        anchors.fill: parent
        model: files
        delegate: ListRow { width: list.rowWidth; name: modelData }
    }
    ScrollBar { view: list.view; anchors.fill: list }
}

Beside a Flickable of your own, give it a Glide and set anchors.fill: flick.

Property	What it does
`view`	The `Flickable` it follows (required)

Experimental, in Tacit.Kit 0.1.
