Music

A music player made only of Tacit.Kit parts, MIT licensed: not one of Tacit's apps but a starting point to read and build on when you make your own. This page shows each of its pages, which part draws what, and how to run it.

The Music window on the wallpaper, on the Albums page: the rail with Albums current, the page title Albums, and a grid of album covers with the album name and the artist under each.
The Albums page.

Music plays the files in your Music folder. Everything you see in it is a kit part, except the album covers, which the app draws itself. The app adds state (the library, the player, where you are) and the arrangement of the parts on each page. Its source is the repository tacit-music-example; the images here are renders of that app, made headless on both palettes.

Nothing in it opens, scrolls or rearranges itself because of playback. The accent mark shows where the playing music is, and the lists stay where you left them.

The parts

An album's page, each piece named by a numbered callout.

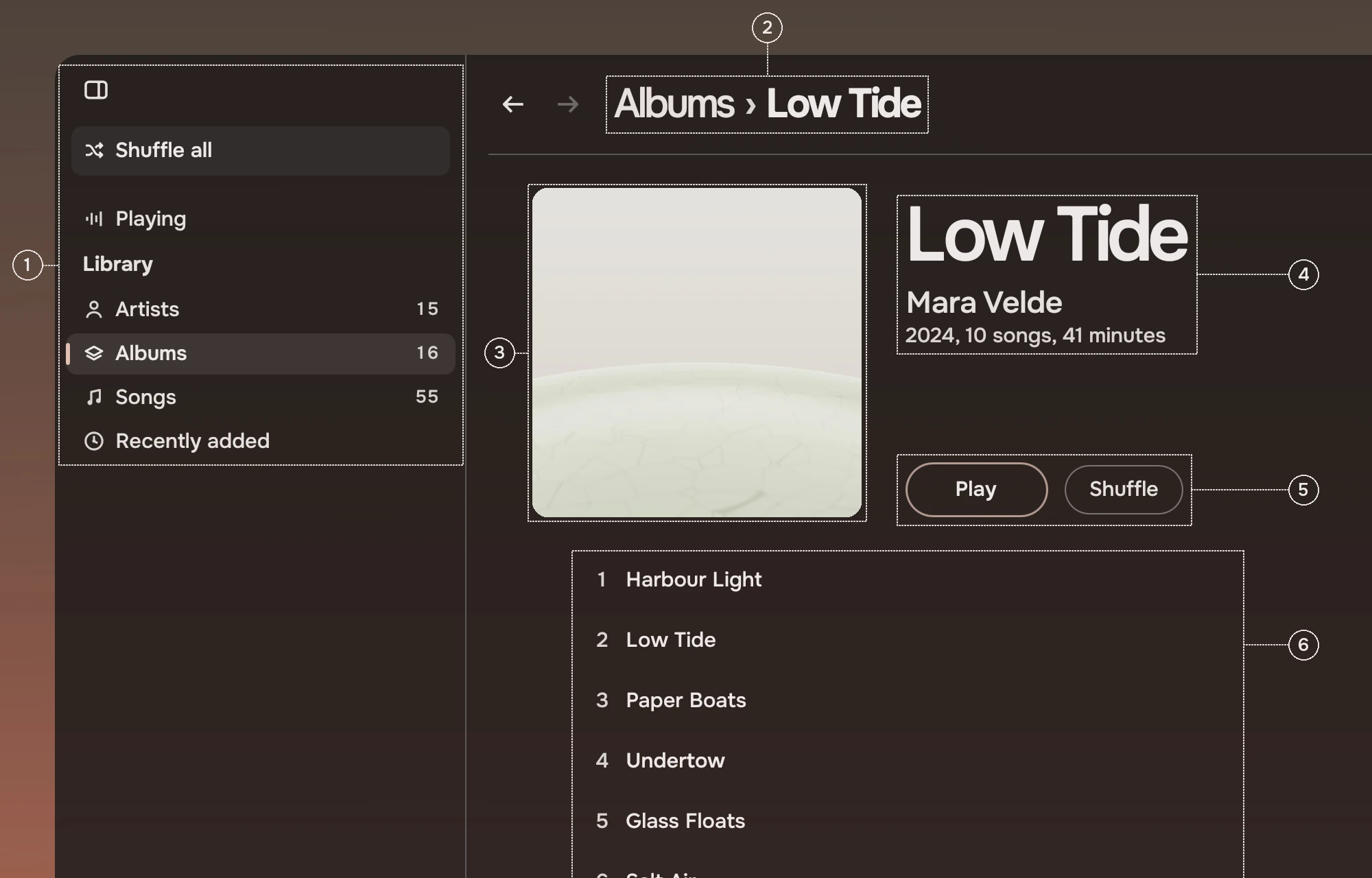

The album page for Low Tide by Mara Velde, with numbered callouts on the rail, the page header, the cover, the title block, the Play and Shuffle buttons, and the song rows.
The parts of an album page.
  1. RailThe rail with Shuffle all as its one action, Playing, and a Library section with a count on each place. It folds to symbols at half width.
  2. Page headerThe page header: back and forward, and the path as the title, such as Albums, Low Tide. The search field sits in its right end.
  3. CoverThe album's cover at the head of the page. The app draws it with its own Cover, which falls back to a symbol when a file has no picture.
  4. Title blockThe album as the page's subject at display size, with the artist beside it as an InlineLink (the kit's link inside a line of text), then the year and length.
  5. ButtonsTwo slabs, Play and Shuffle, the first forward and the second quiet.
  6. Song rowsA list row for each song inside a row list: the track number as the row's lead, the name, and the length as a fact at the end. The playing song carries the accent mark and a small waveform. Track numbers are set with leadFigures, which holds room for two figures in a ten-track album so the numbers line up.

The rest of the parts are in the pages below.

WhereParts
The windowRail, RailRow, RailSection, and the kit's tokens for the window's ground
Library pagesPageHeader, SearchField, PageState
Albums, Recently addedCoverGrid, with scrolling through Glide
Songs, an album, an artistRowList, ListRow, Slab, Waveform
ArtistsRowList, ListRow, JumpIndex
PlayingTransport, Waveform, Slider, SectionHeading, Slab
The player barTransport, Waveform, Slider, IconButton, Slab

Text is always TacitText and symbols are always Symbol; sizes, spaces and corners come from Kit.tokens, and the colours follow the wallpaper without the app setting them.

Albums and Recently added

Albums and Recently added are one grid of covers, with the album's name in the main ink and the artist in the secondary ink under each. The grid is the kit's cover grid, a part of its own: it sets one square shape in columns with words under each, where the picture grid sets pictures of any shape in rows with none. The cover that belongs to the playing album carries the accent mark before its name. Recently added puts the newest files first.

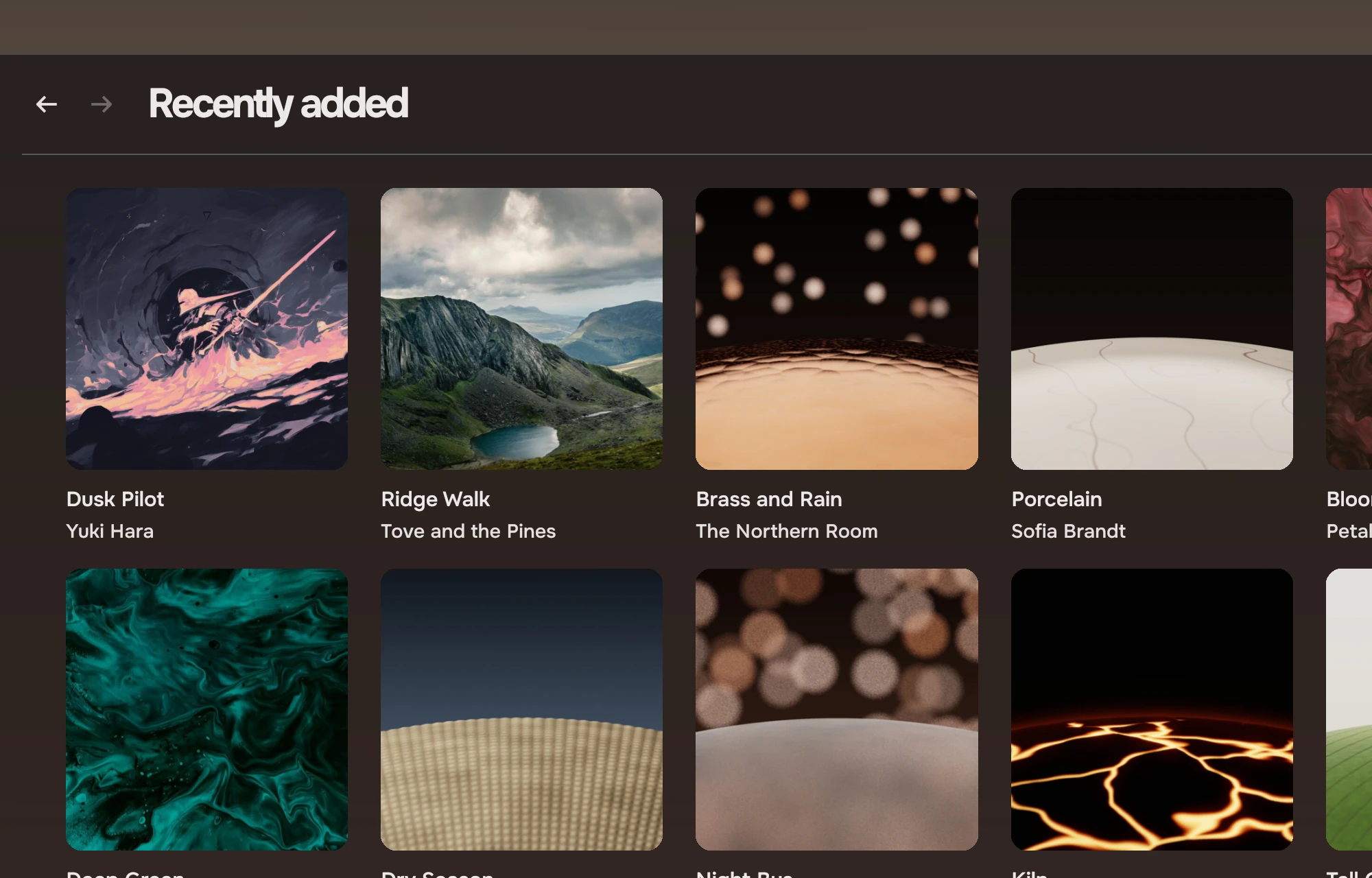

The Recently added page: the header with the title and the Search Music field at the right, and a grid of covers with the album and the artist under each.
Recently added, the same grid, newest files first.

An album opens as its own page, with the path in the header (Albums, Low Tide) and the way back one step away.

Artists

Artists is a list with a small cover, the name, and how many albums, with a jump index down the right edge. The artist who has the playing music carries the accent mark; the list does not move to show it.

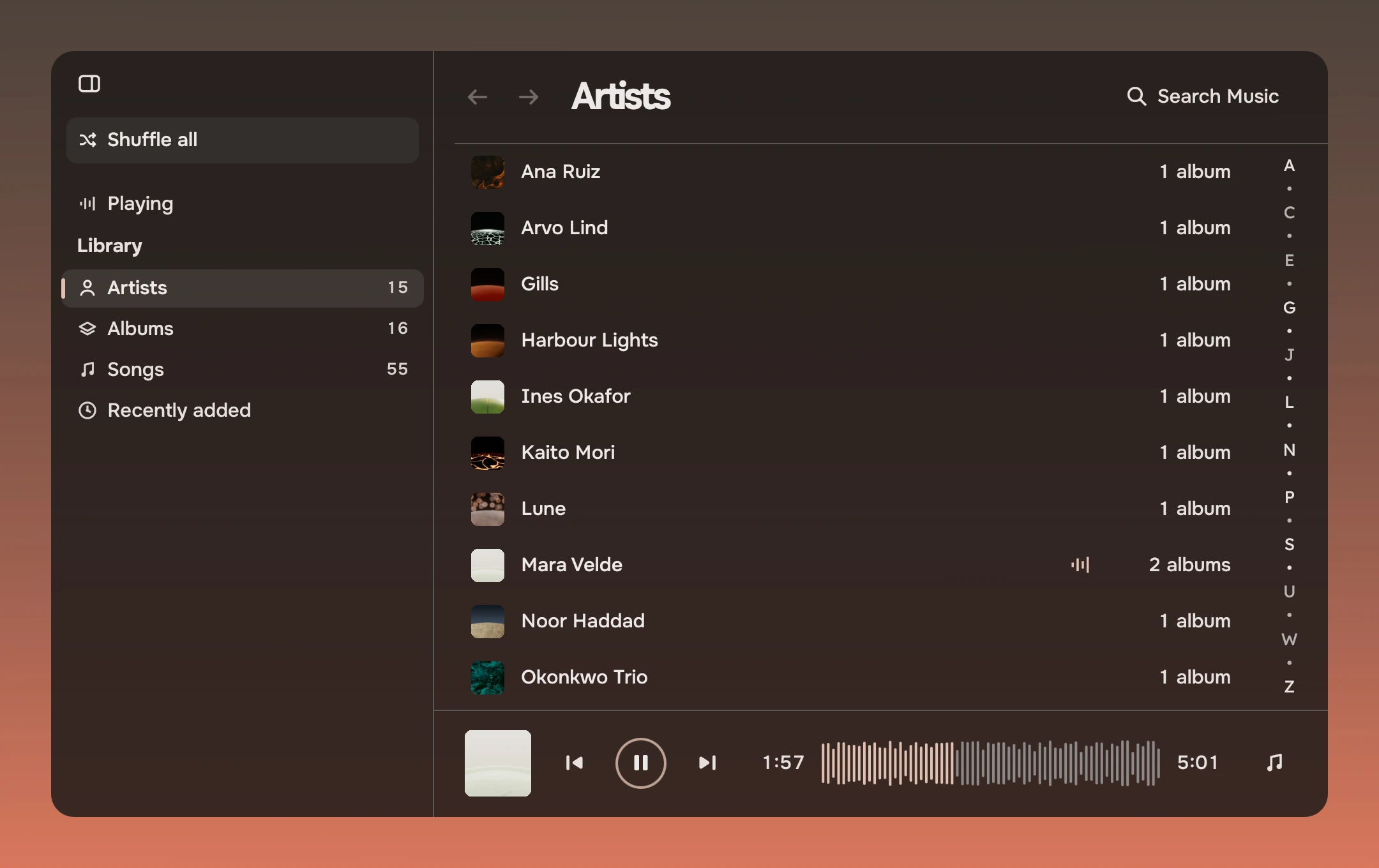

The Music window, 1000 wide, on the Artists page: rows for Ana Ruiz to Okonkwo Trio, each with a small cover and the count of albums, the playing mark on the row of Mara Velde, and down the right edge the jump index, folded to A, a dot, C, a dot, E and on to Z because the window is short.
Artists, with the playing mark and the jump index. In a short window the index folds: a dot stands for the letters between its neighbours.

An artist

An artist's page opens with the name at display size, the counts, and Play and Shuffle. Below it every album is a section with its own header (the cover, the name, the year), so a whole discography is one list and the arrow keys pass from one album to the next.

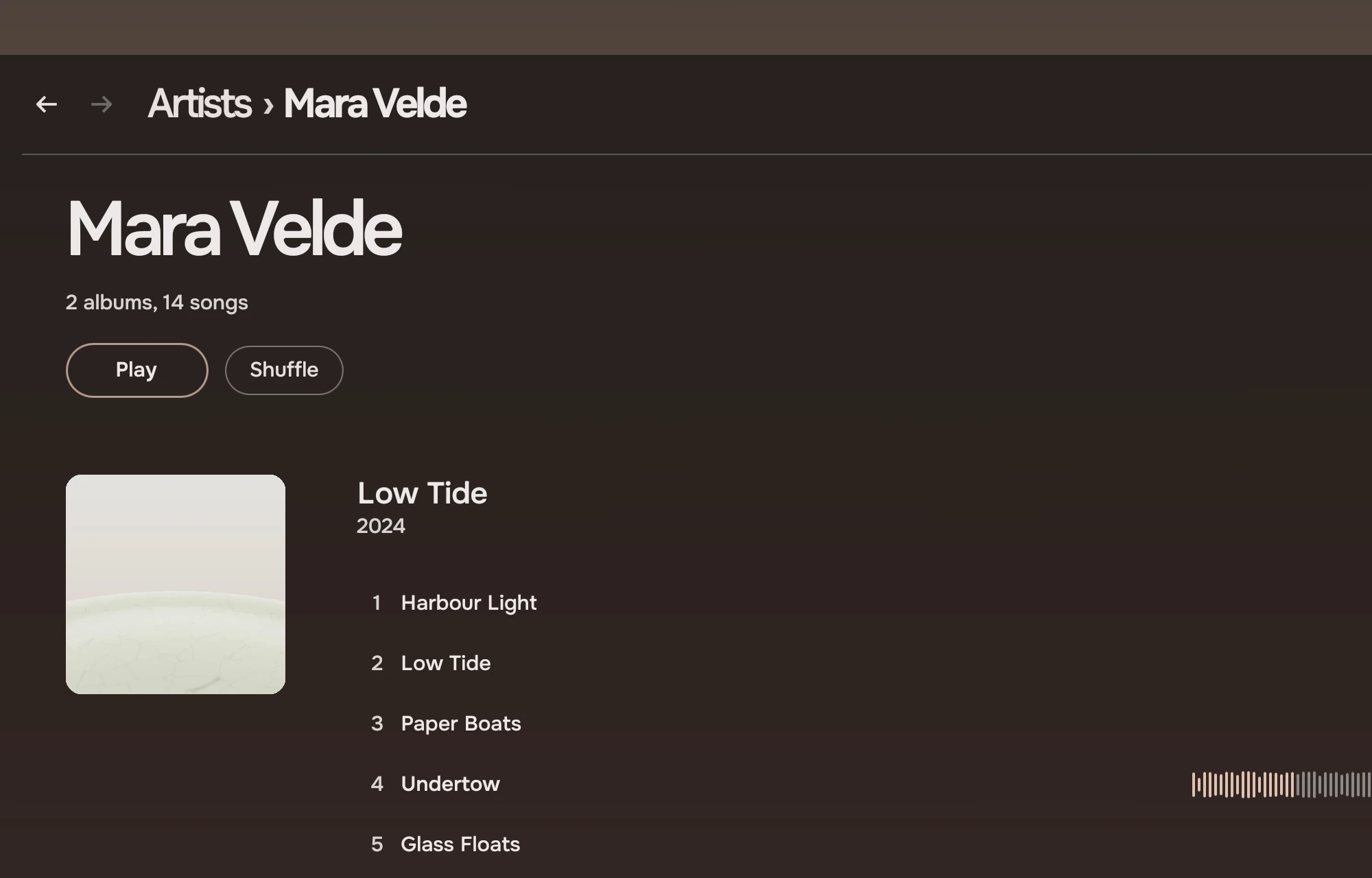

The page for Mara Velde: the name at display size, 2 albums, 14 songs, Play and Shuffle, then the album Low Tide with its cover and ten song rows, the fourth showing the playing mark and a waveform.
An artist, with the albums as sections of one list.

Songs

Songs is every song in one list, by artist and album, each row with its cover, the name, the artist beside it and the length. Enter plays from that song on, so the queue is the rest of the list.

The search field opens with Ctrl+F, or from the header. Typing searches the whole library at once, and the results replace the page's content as rows until the field is empty again. From the player or the Playing page, Ctrl+F first goes to Songs, then opens the field.

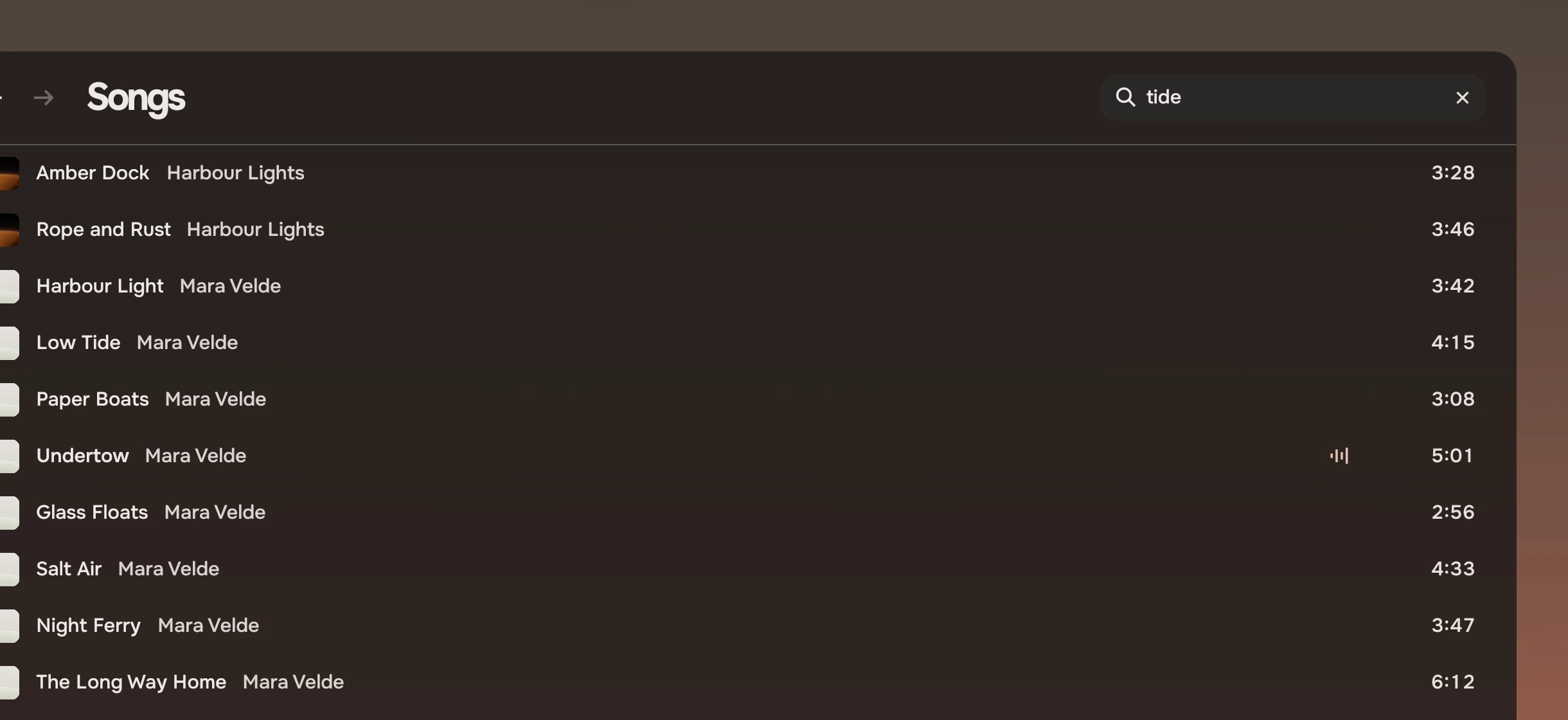

The Songs page with tide typed in the search field at the right of the header, a close button in the field, and below it the songs whose name, album or artist matches, from Amber Dock to Sea Wall.
Search over the whole library.

Playing

Playing is a stage page. The cover, the song at display size with the artist and album, the transport at 64 and a slider for the volume, and across the page the waveform with the playhead and the time on both sides. Under it, Up next and Played before are rows with covers, each under a section heading. Lyrics, from an .lrc file next to the song, is a page of its own with a way back.

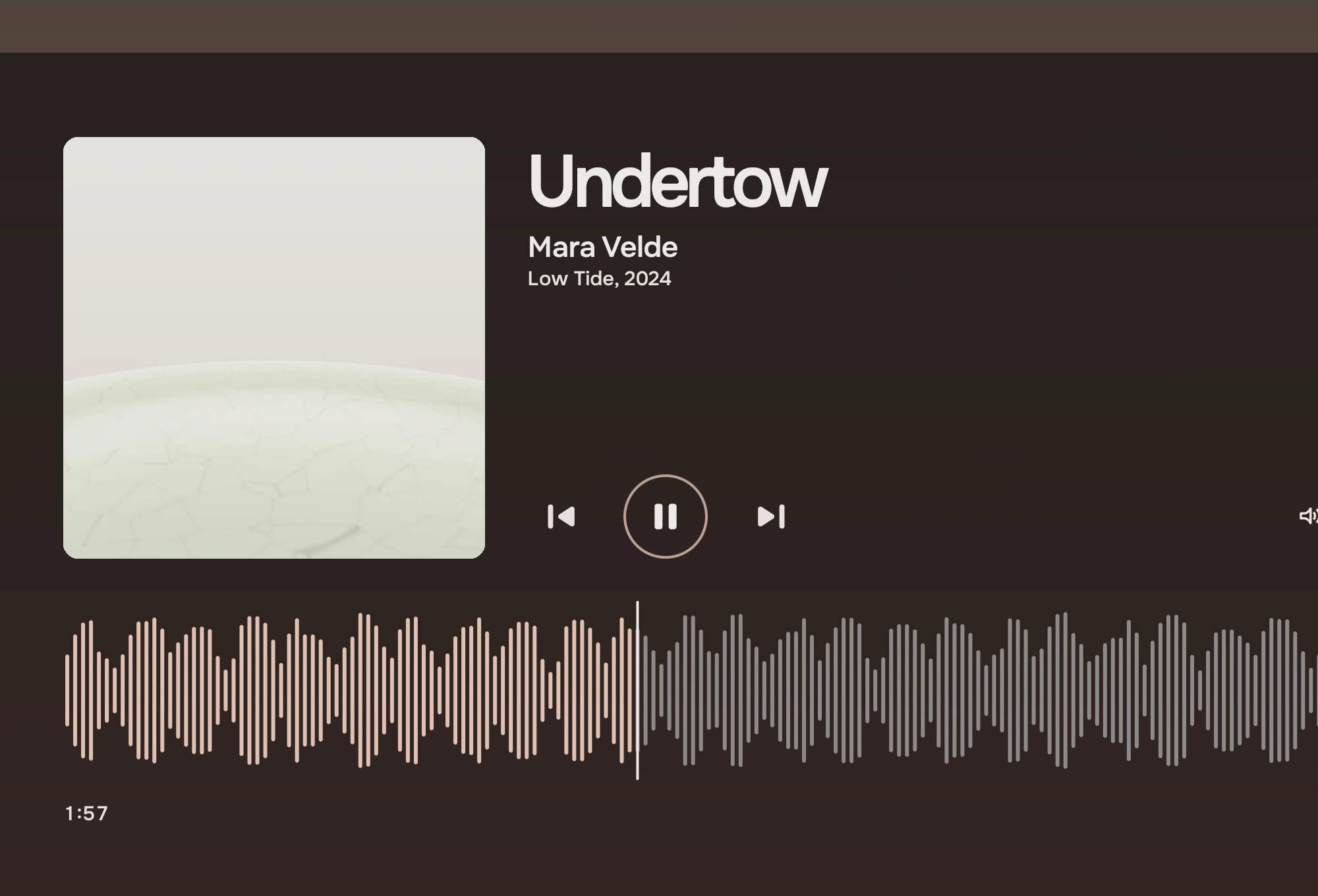

The Playing page: a large cover, the song Undertow, the artist Mara Velde and Low Tide, 2024, the transport with pause in a ring, a volume slider, and the waveform running across the page with its played part in the accent and the playhead at 1:57.
Playing.

The player bar

At the foot of the library pages: the cover and the song, the transport at 40, the waveform with the time on both sides, a Lyrics button and the volume. As the window narrows the bar keeps the waveform's room: the volume goes first, then the song's name, since the cover still shows what plays.

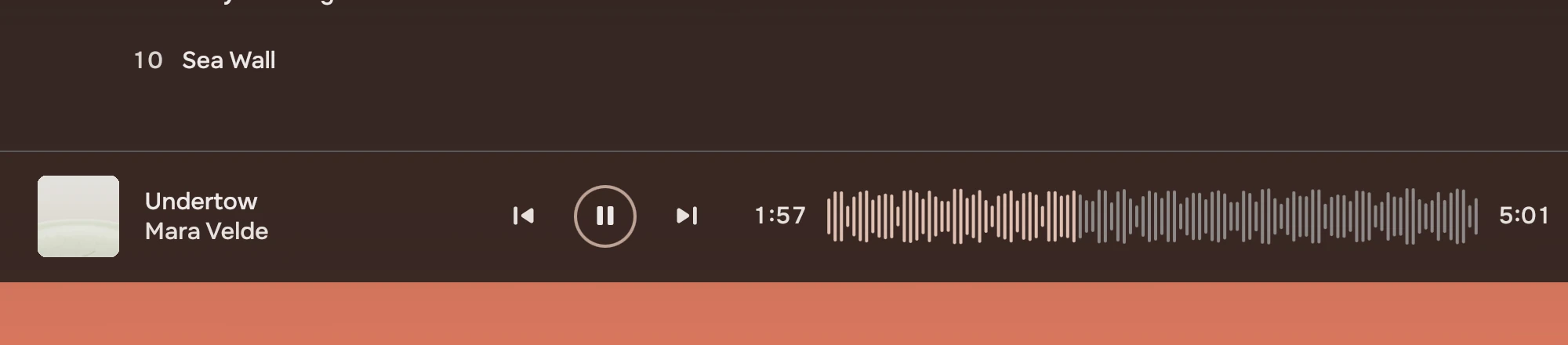

The player bar below a grid of covers: a small cover with Undertow and Mara Velde, previous, pause in a ring and next, the time 1:57, the waveform, the time 5:01, a Lyrics button and the volume slider.
The player bar.

At half width the rail folds to its symbols and the Playing page stacks: the transport moves under the title and the queue takes the full width.

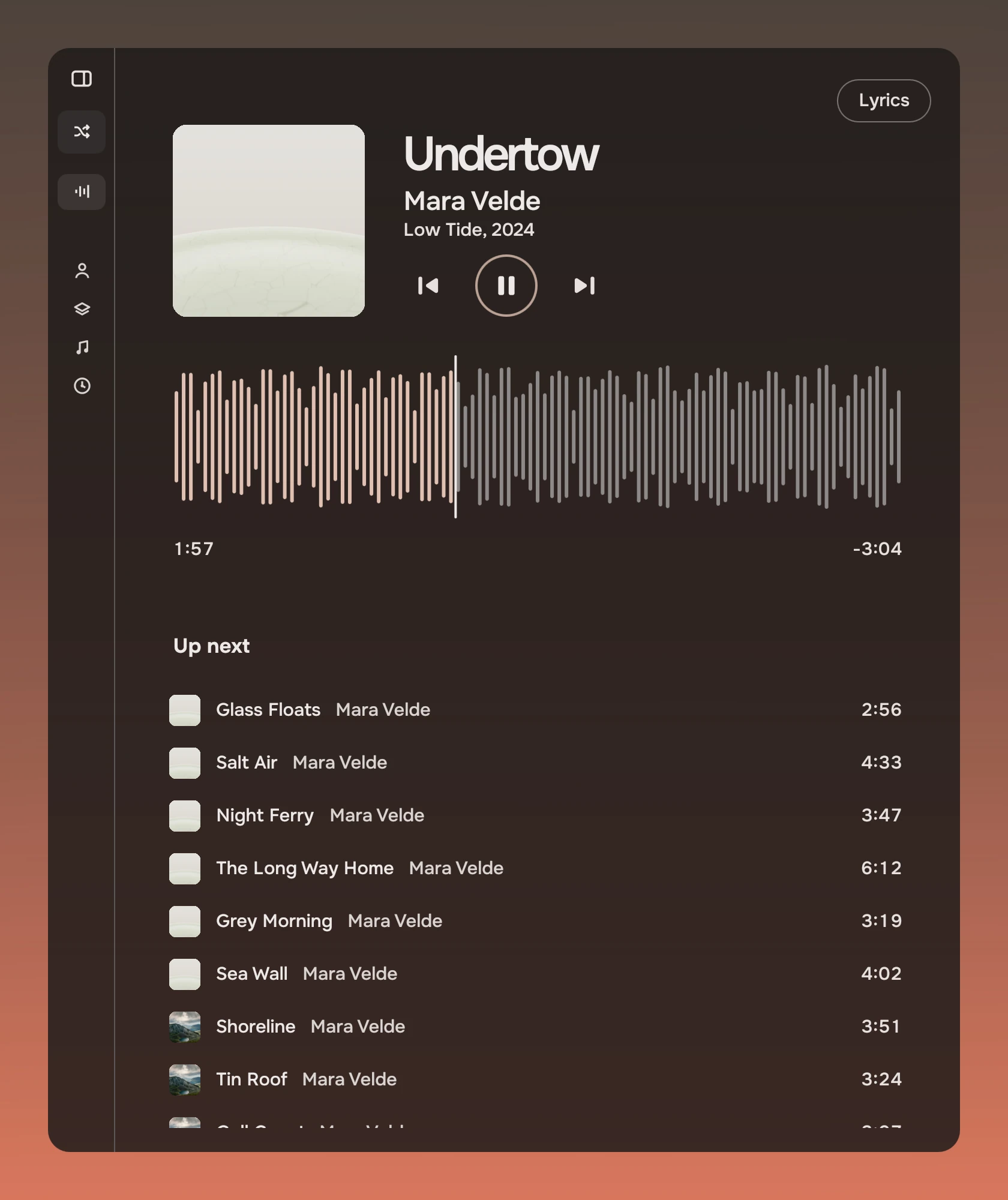

The Music window at half width: the rail folded to symbols, the cover, the song, the transport, the waveform across the page, and the Up next list below.
Half width.

Keys

KeyDoes
SpacePlays and pauses. In a list Space belongs to the list, which uses it to ask for a look (peeked); Music does not use that, so Enter plays the row under the cursor.
Left and RightSeek five seconds. In the cover grid they step to the previous and next cover.
Ctrl+FOpens Search Music.
Arrow keysMove in lists; in the cover grid Up and Down go a row, and Home and End go to the first and last cover.
LettersTyping in a list jumps to a name.
EnterOpens the cover under the cursor, or plays the row.

The window takes Space and the seek keys only when no list or button wanted them, so they never fight a control that has focus.

States

An empty library says so once and offers the way to try the app. A page state holds the sentence and one button, Play the sample, which plays the short tone sequence that ships with the app.

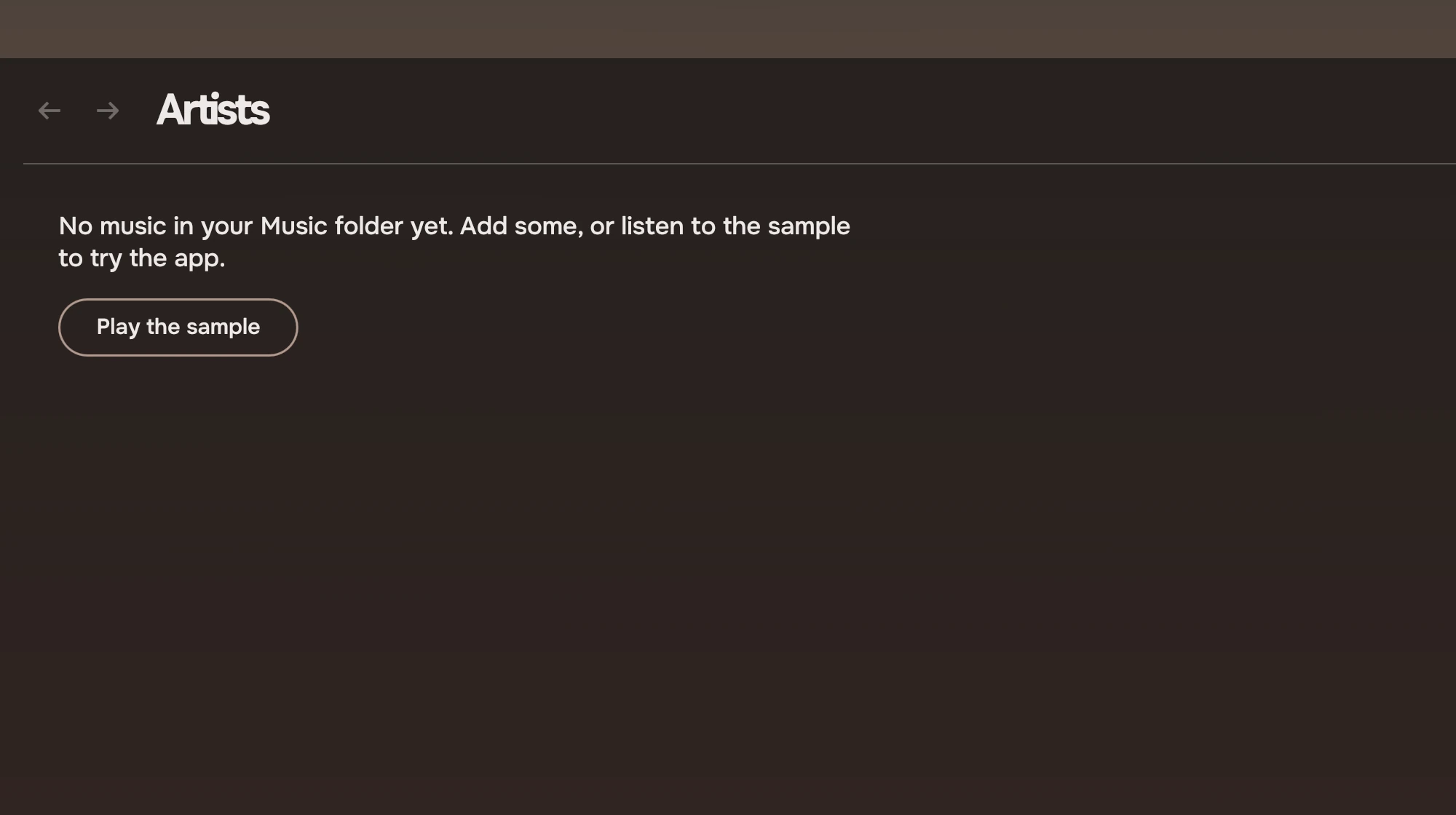

The Artists page with no music: the header, and under it the sentence No music in your Music folder yet. Add some, or listen to the sample to try the app, with a button, Play the sample.
An empty library.

A song that cannot be played, such as a file that was moved or deleted, is marked where it is and said once in the player bar. The row carries a warning symbol in place of its number. The bar names the song, says why, and offers the next one.

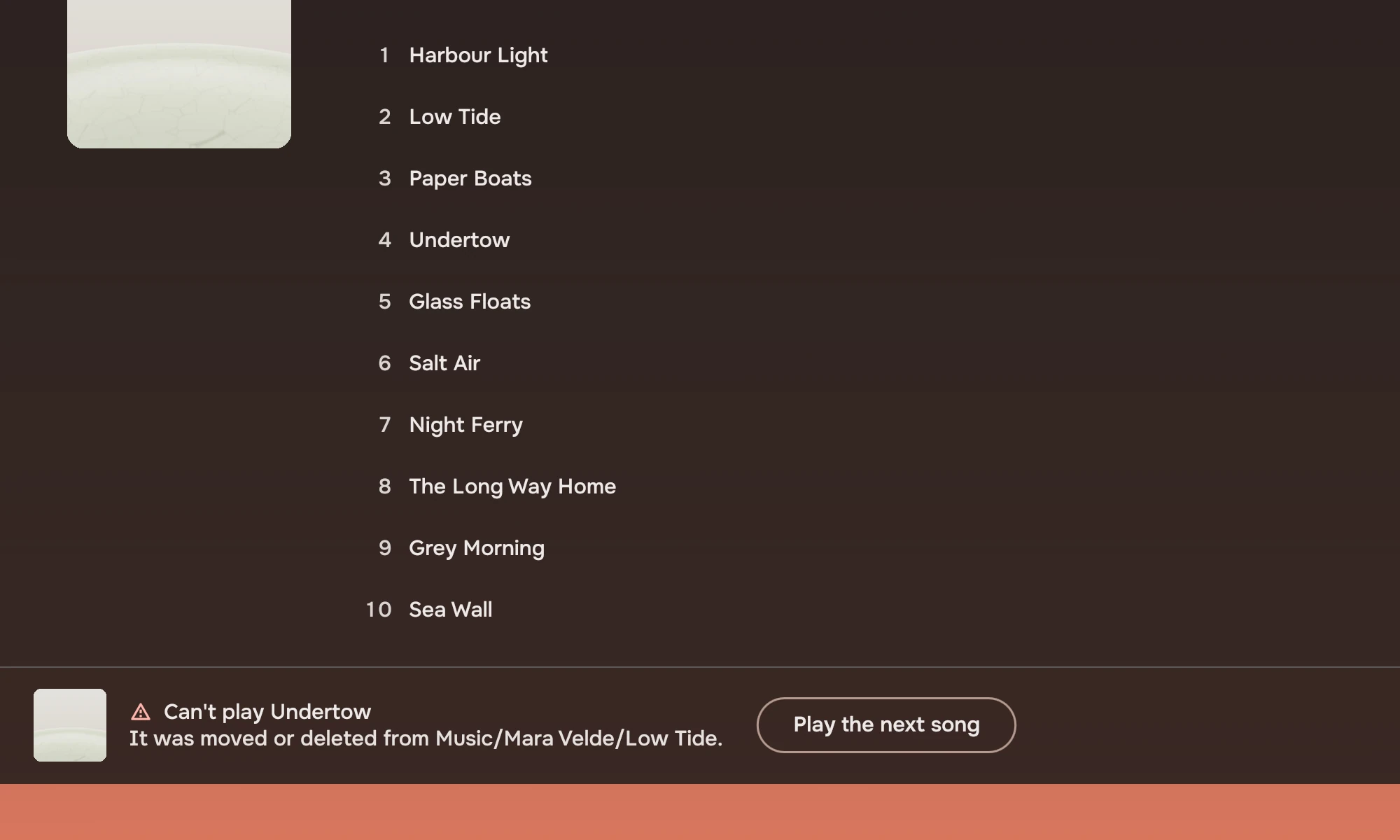

An album's song list in which the fourth row, Undertow, has a warning symbol instead of its number. The player bar below says Can't play Undertow, It was moved or deleted from Music/Mara Velde/Low Tide, with a button, Play the next song.
A song that cannot play.

Run it

You need Quickshell 0.3 or later, Qt 6.7 or later with QtMultimedia, ffmpeg and ffprobe, and Tacit.Kit on the QML import path. On Tacit the kit is installed. Elsewhere, point the import path at the kit:

QML_IMPORT_PATH=/path/to/tacit-kit/qml qs -p shell.qml
VariableDoes
MUSIC_DIRThe folder to read. The default is ~/Music.
MUSIC_MUTED=1Mutes the audio output, for tests.
XDG_CACHE_HOMEWhere the cache goes. tacit-music-example/ holds covers and waveform peaks.

To try it without your music, tools/make-demo.sh makes 55 short tones with tags and covers, and MUSIC_DIR points the app at them. tools/render.sh renders every page offscreen on both palettes; it starts the app with MUSIC_SCENE set, a test hook that nothing else depends on.

How the app is built

State is three singletons. Library reads the folder with find and ffprobe and takes each cover from folder.jpg, cover.jpg or the first song's own picture. Player owns the queue, the history, the volume and one MediaPlayer. Nav is a stack of pages with a place in it. Each page is one file, and the four library pages sit in LibraryPage, which gives them the header, the search, the player bar and the empty state. Every list is a RowList whose rows are one small wrapper around ListRow, wired to its list for selection, the keyboard ring and Enter.

Pages never write to the queue or the lists because of playback; they read current, upNext and history.

What the kit did not cover

Code

The Albums page is the cover grid and what opening a cover does.

LibraryPage {
    here: "Albums"

    CoverGrid {
        x: Kit.tokens.space.page
        y: Kit.tokens.space.xl
        width: parent.width - 2 * Kit.tokens.space.page
        height: parent.height - y
        readonly property var albums: Library.albums
        items: albums.map(a => ({ source: a.cover, title: a.name, subtitle: a.artist, current: a.key === Player.current?.albumKey }))
        glyph: "music_note"
        onActivated: i => Nav.go("album", albums[i].key, albums[i].name)
    }
}

Experimental, in Tacit.Kit 0.1.
